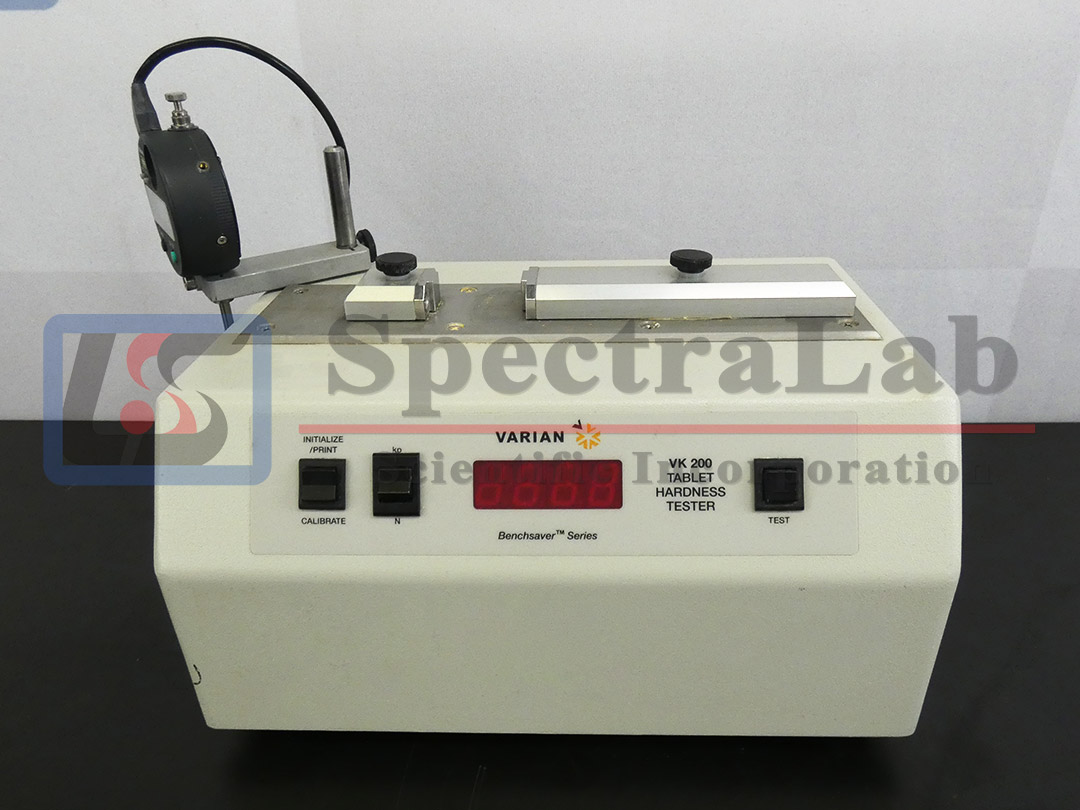

The VK 200 combines the accuracy and precision of a microprocessor-controlled instrument at an economical price. Operation is straightforward, the top-loading design makes tablet insertion quick and convenient, and the jaws automatically adjust for tablet size. Quick, easy calibration is accomplished in the laboratory in minutes. The VK 200 has an exceptionally
small footprint—perfect for the most crowded bench top. Its rugged design is perfect for on-line testing in production areas.

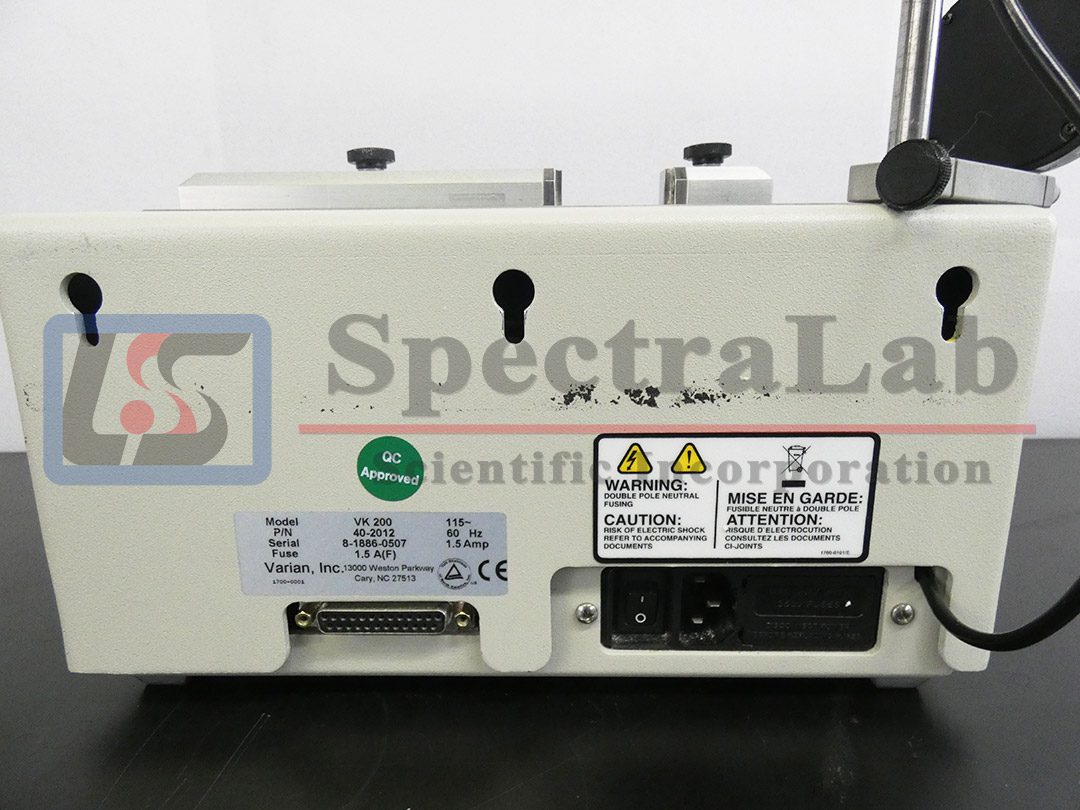

Each VK 200 is shipped complete with a standard jaw plate, fragment safety shield, trim pot tool, and tablet fragment brush. The VK 200 operates at a constant speed of under 3.5 mm/sec. A RS-232 communication port is located on the rear of the VK 200 system.
Specifications | |||
Range: | 0.4 to 35 kiloponds (also available from 0.4 to 50 kp) | ||

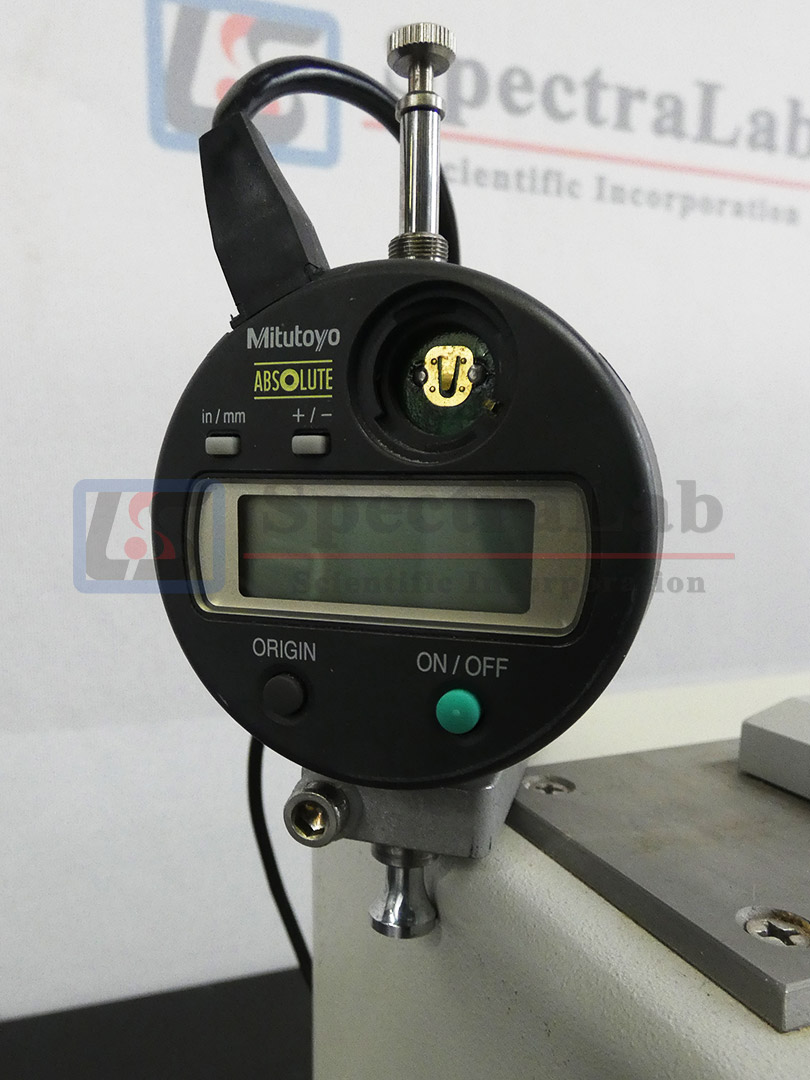

Thickness: | With optional thickness gauge | ||
Resolution: | 0.001 in./ 0.01 mm | ||
Jaw Configurations: | Standard jaws accommodate tablets up to 1.375 in. diameter | ||
Dimensions & Weight | |||
Size: | Height 6 in.
15.24 cm |
Width 11 in.
27.94 cm |
Depth 7 in.
17.78 cm |
Weight: | 22 lb/9.98 kg |
