Sample injection time is only 40 seconds for a 10µL injection. When flow line rinsing after injection is included, the unit is ready for the next injection in about 2 minutes. As a result, high throughput repeat analysis is possible, and sample preparations such as dilution and mixing can be performed rapidly. As well as being a multi-purpose autosampler, it is also capable of high speed sample injection. In particular, the time required for sample preparation such as dilution and mixing has been shortened substantially. Furthermore, sample processing capability is greatly enhanced since two 96-well titer plates (standard and deep-well) can be used. Injection repeatability, essential for quantitative analysis, is excellent, producing highly reliable analytical results.
| Category | SIL-10AF |
| Sample Injection System | Variable sample injection system (fixed loop injection is possible as well) |
| Settable Range of Injection Volumes | Standard: 1-50µL (1mL increments) Option: 1-400µL1, 1-2000µL2, 1-5000µL3 |
| Sample Processing Capability | 100 (using rack S), 80 (using rack L), 192 (using rack MTP2), 25 (using rack LL) |
| Sample Vial | 7 types, made of either glass or polypropylene |
| Number of Injections | 1-30 times per sample (varies with sample) |
| Setting of Analysis Time | 0.01 – 9999.9 (0.01 minute increments) |
| Needle Cleaning | Inside and outside of needle cleaned with the rinse port |
| Injection Repeatability | RSD: 1.0% (for shortened injection operation) RSD: 0.5% (for SIL-10A compatible injection operation) <10µL injection, under specific conditions> |
| Operating pH Range | pH 1-10 |
| Sampling Pretreatment | Yes |

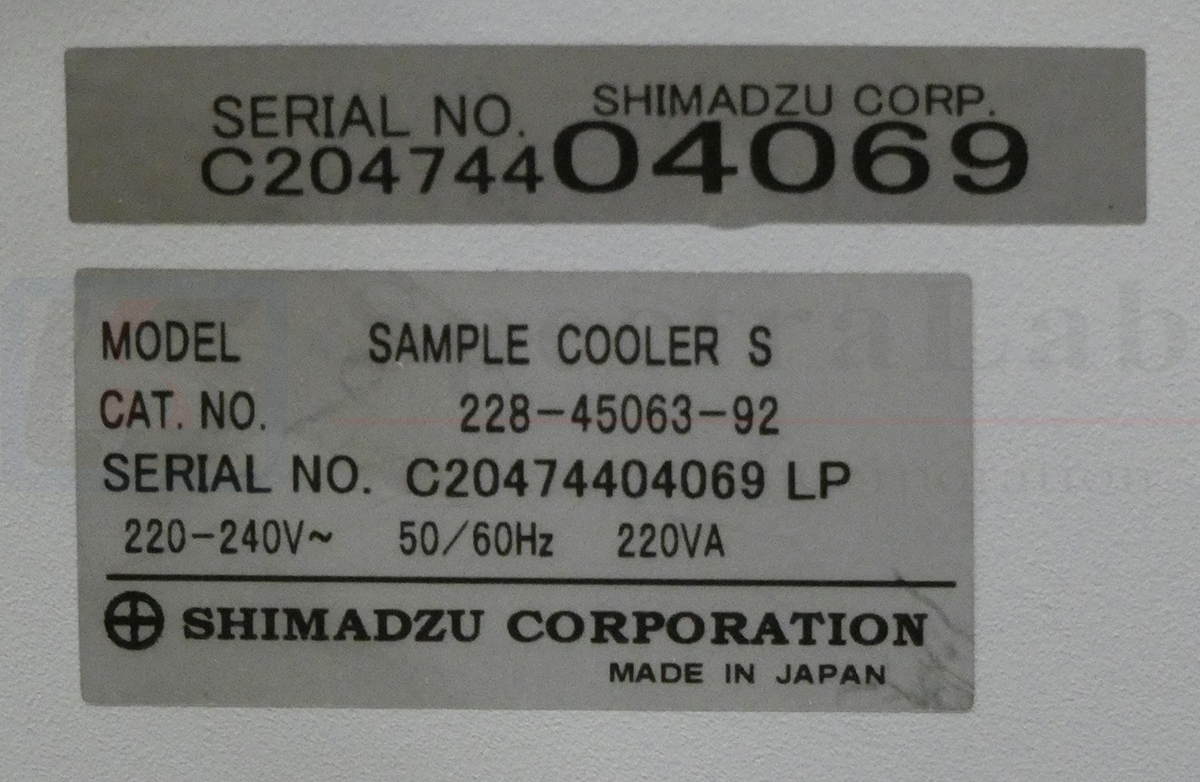

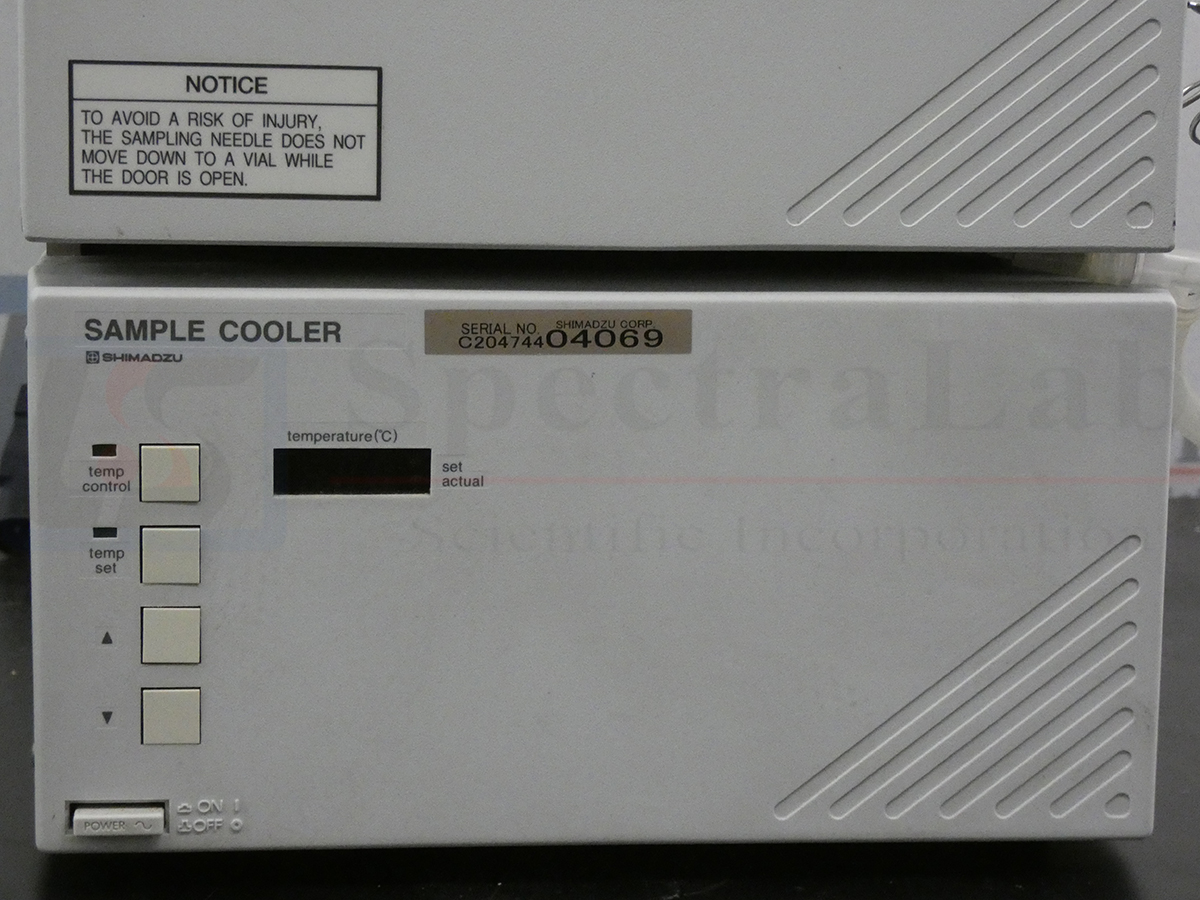

| Sample Cooling | Sample Cooler S (60 Samples), Sample Cooler L (50 Samples) |
| Maximum Pressure | 34.3MPa |
| Wetted Surface Material | SUS316, ceramics, vespel, others |

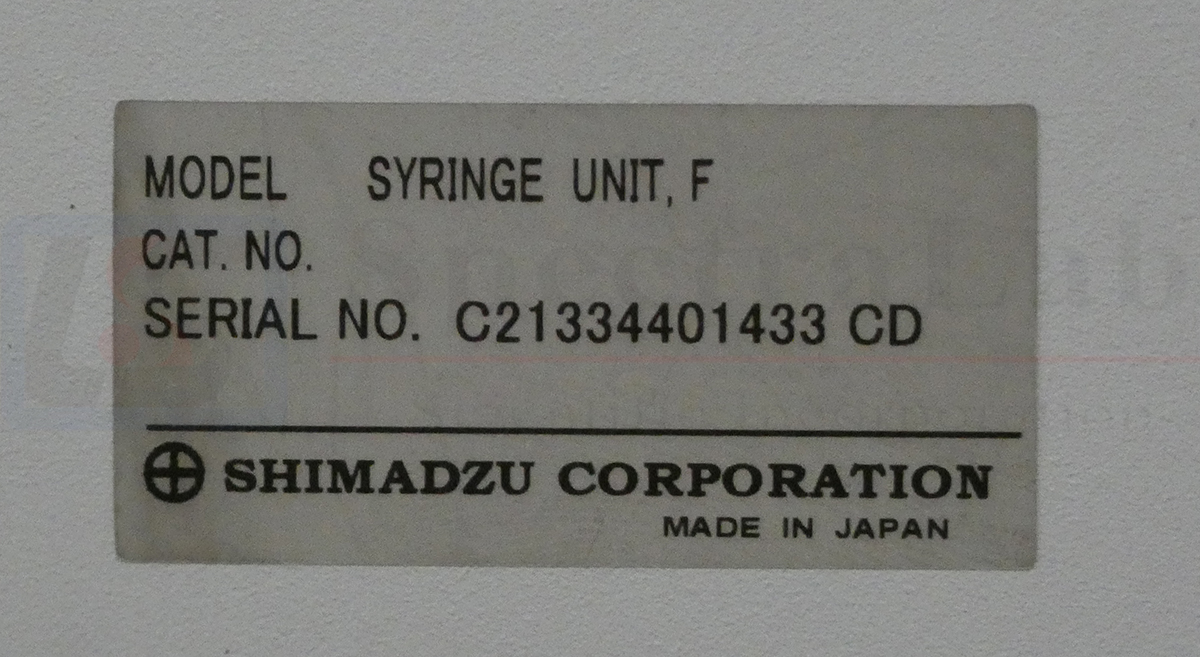

| Size, weight | Main Unit: 260 (W) x 150 (D) x 280 (H) mm, 18.5kg, Syringe Unit: 160 (W) x 150 (D) x 280 (H), 4kg |
| Power Requirements | AC 100V/120V/230V, 100VA, 50/60Hz |
