For parts/not working – unable to repair.

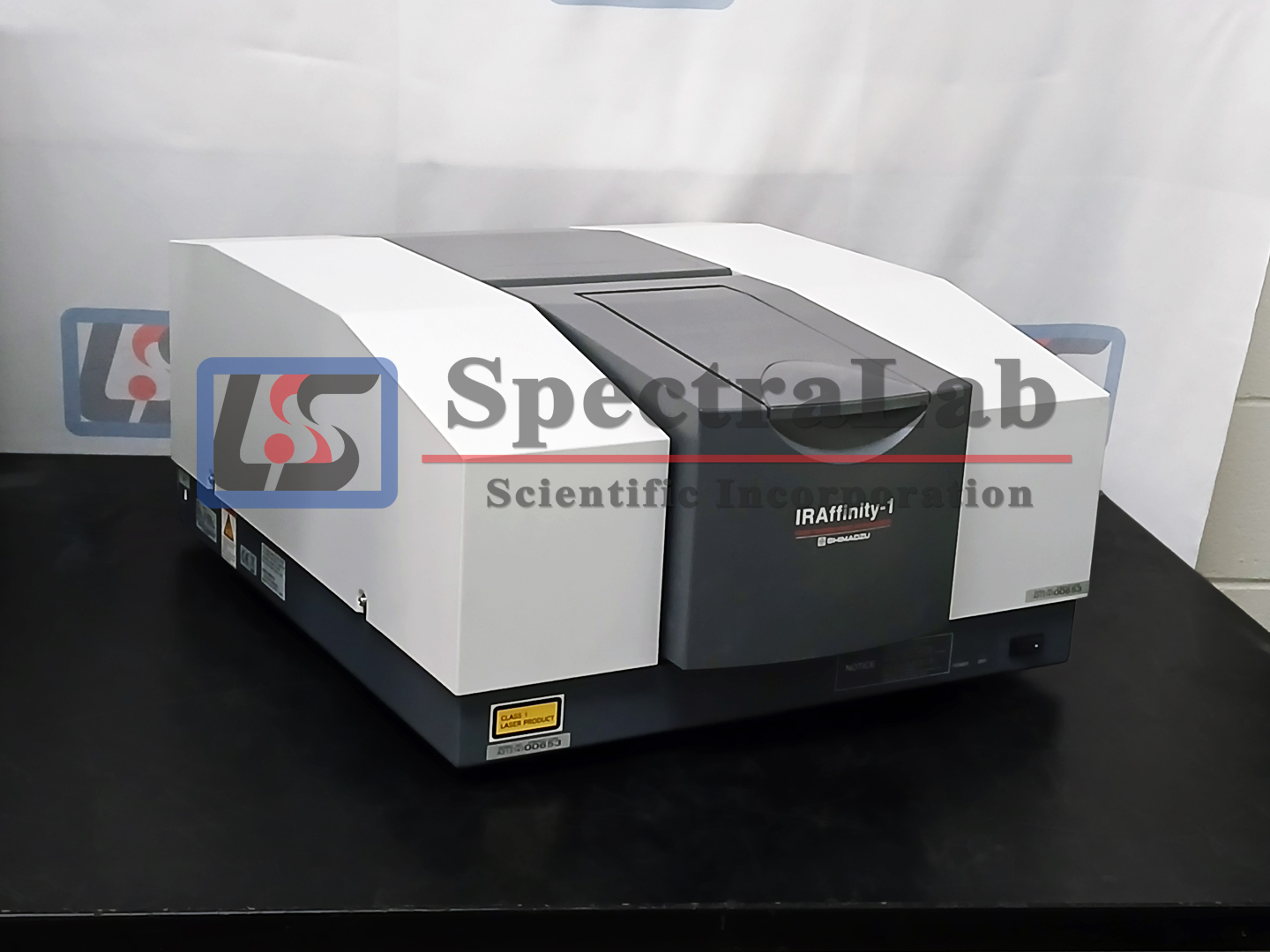

Shimadzu designed the IRAffinity-1 Fourier Transform Infrared (FTIR) spectrophotometer with high-throughput optics and a dynamic alignment mechanism to increase sensitivity, stability and usability.
The IRAffinity-1 offers the highest signal-to-noise ratio (sensitivity) in its class at 30,000:1, with a maximum resolution of 0.5 cm-1 (according to Shimadzu’s investigation in January 2008). The unit achieves this level of sensitivity by using a high-energy ceramic light source; temperature-controlled, high-sensitivity DLATGS detector; and high-throughput optical elements. Also, the IRAffinity-1 includes optimized electrical and optical systems to minimize noise levels.
The IRAffinity-1 includes patented technology to increase stability and precision. Its moving mirror is run smoothly and precisely by a flexible joint system patented by Shimadzu. The interferometer is optimized and stabilized by a dynamic alignment mechanism on which Shimadzu has a patent pending. The interferometer’s optical elements are protected from humidity and stabilized by a sealed interferometer, continuously removing moisture by a reactive polymeric desiccator, and coating the beam splitter with moisture-resistant protective film.
To increase reliability, the IRAffinity-1 executes self-diagnosis at initialization and monitors the state of the instrument during operation. Users can check basic performance using a standard-feature validation program.
