This set includes:
- (1) Shimadzu GC-2010 Plus Capillary GC
- (1) Shimadzu GCMS-QP2010 Plus
- (1) TD-20 Thermal Desorption Analyzer
- (1) Shimadzu AOC-20s Auto Sampler
- (1) Shimadzu AOC-20i Auto Injector
Features:
- Easy maintenance reduces downtime
The GCMS-QP2010 Plus incorporates a front-opening chamber in a design that is both visually pleasing and practical, allowing maintenance to be performed with ease from the front of the instrument. “MSNAVIGATOR,” which supports maintenance, has been improved to help the user perform instrument maintenance. - Superior technology achieves high sensitivity and stability

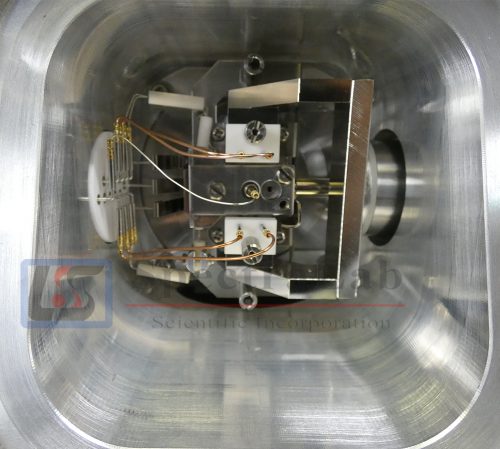

The ion optics are optimized by employing a high-performance quadrupole mass filter and Shimadzu’s proprietary Optdesign simulation program to provide high-quality mass spectra. Fully-automated MS tuning enables anyone to optimize parameters easily and consistently. This helps ensure that stable mass spectra can always be obtained. - GC-MS System Based on New Environmentally Friendly Concepts
When Ecology mode is entered, unnecessary power consumption by the GC, MS, and PC is automatically eliminated. The consumption of carrier gas is also automatically reduced. Furthermore, Ecology mode can be entered automatically after a batch run, allowing the lab to realize running cost savings on a nightly basis.
Shimadzu GCMS-QP2010
| Type | Specification |
|---|---|
| Mass range (m/z) | 1.5 to 1000 |
| Ionization mode | EI |
| EI scan sensitivity (m/z) | 1 pg octafluoronaphthalene 272 S/N > 200 |
| Column flow | Up to 4mL/min |
| Pump | Turbomolecular pump (58 L/sec for He) Rotary pump 30 L/min (60Hz) |
Shimadzu GCMS-QP2010 Plus
The GCMS-QP2010 Plus comes equipped with a variety of new features and an expanded mass range (1.5 to 1090 Daltons). Combining these attributes with two and three times the sensitivity for Octafluoronapthalene (OFN) in Electron Impact (EI) and Negative Chemical Ionization (NCI) modes respectively over the GCMS-QP2010 makes the GCMS-QP2010 Plus the ideal instrument for characterizing complex organic mixtures in fields from toxicology to environmental monitoring to food and flavors sciences.
Shimadzu TD-20 Thermal Desorption Analyzer
| Sample tube | Outer diameter: Approx. 6.35 mm (1/4 inches); Length: 90 mm |
|---|---|
| Heating temperature range | 80°C to 400°C (unit: 1°C) |
| Flow-rate control range | 21 to 150 mL/min (unit: 1 mL/min) |
| Sampling line temperature | 80°C to 350°C (unit: 1°C) |
| Tube handling | Capping/decapping mechanism based on stepping motor |
Shimadzu AOC-20s/i Auto Sampler/Auto Injector
- AOC-20s handles up to 150 samples. The AOC-20i used alone can handle up to 12 samples
- Compact design allows two AOC-20i to be mounted on a single gas chromatograph, significantly improving productivity.
- Supports diverse injection modes, including solvent flushing and PTV large volume injection.
