FCV-20AH2 | FCV-12AH | FCV-20AH6 | FCV-14AH | |
P/N | 228-45015-32 | 228-45013-91 | 228-45017-32 | 228-45014-91 |
Valve Type | 2-position/6-port rotary valve | 6-position/7-port rotary valve | ||
Maximum Pressure | 39.6 MPa | |||
pH Range | pH 1-10 | |||
Temperature Range | 4°C – 35°C (non-condensing) | |||
Dimensions | 110 (W) x 140 (H) x 250 (D) mm, 4kg | 110 (W) x 110 (H) x 250 (D) mm, 4kg | 110 (W) x 140 (H) x 250 (D) mm, 4kg | 110 (W) x 110 (H) x 250 (D) mm, 4kg |
Power | AC 110V, 50/60 Hz | Sub-Controller | AC 110V, 50/60 Hz | Sub-Controller |
Features:
- Column switching valve to fully automate your HPLC analysis
- Column switching valve housing 7-port, 6-position high pressure valve
- Used for automatic multi-column switching(2 valves required)
- Maximum pressure 39.6 MPa

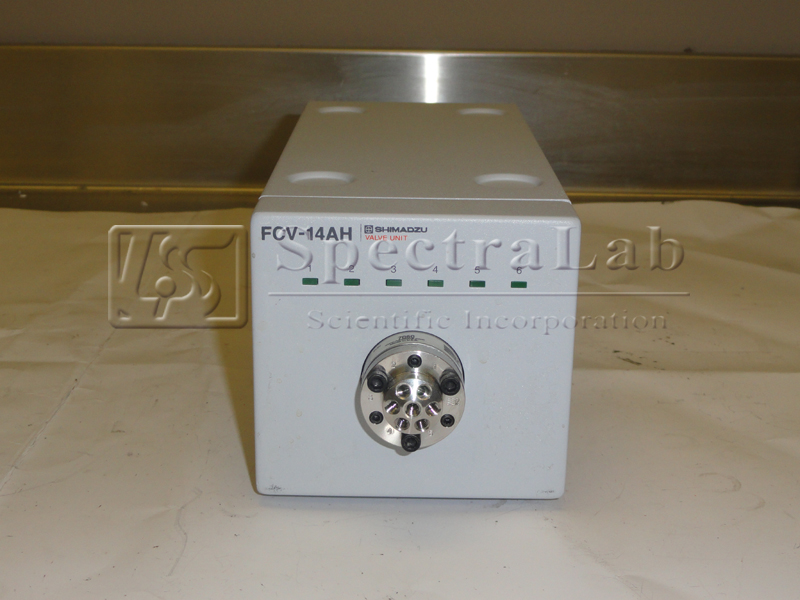

This refurbished Shimadzu FCV-14AH is in great condition. It has been tested at SpectraLab Scientific. A 90 day warranty is included.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members. Thanks for looking and we look forward to hearing from you!
