AKTA Explorer systems use one working platform for all techniques and sample loads from µg to g scale. Systems can be configured for use at flow rates of up to 100 ml/min (pressure 10 MPa) or 10 ml/min (pressure 25 MPa). Fine-tuning system settings ensure optimum running conditions for all modern high performance media. Pre-programmed method templates and optimized system configurations minimize preparation time by allowing rapid media screening, method scouting and optimization as well as scale up experiments. Dedicated method templates are supplied for the most common scouting procedures including automatic media screening and automatic eluent pH scouting for ion exchange chromatography.
Specifications:
| Flow rate limit (mL/min) | 100 |
| Pressure limit (MPA) | 10 |
| Multiple wavelength detection (190-700 nm, up to 3 wavelengths simultaneously) | Standard |
| pH monitoring (pH range 2-12) | Standard |
| Conductivity monitoring (1µS/cm-999.9 mS/cm) | Standard |
| Buffer selection (8 buffers) | Standard |
| BufferPrep, oline buffer preparation | Standard |
| Automated sample injection | Standard |
| Multiple sample injection (up to 8 samples) | Standard |
| Fraction collection (8 large fractions) | Standard |
| Fraction collection (up to 175 fractions) | Optional |
| Column scouting | Standard |
| Reversed flowthrough column | Standard |
| Air sensor | Optional |
| Dimensions – mm (W x D x H) | 500 x 460 x 620 |
| Weight (kg) | 75 |
| Solvent compatibility | All commonly used chromatographic solvents |
| Operating temperature (°C) | 4-40 |
| Voltage | 100-120/220-240 VAC, 50-60 Hz |
| Safety certifications | CE 89/336/EEC (EMC directive), CE 73/23/EEC (LV directive), EN-61010-1 (IEC1010-1, UL3101, CSA22.2 1010-1) |
This AKTA Explorer 100 system includes:
- Box 900 Storage/Solvent Tray
- UV-900 detector
- P-900 Pump system
- PH/C 900 with Conductivity and PH sensors

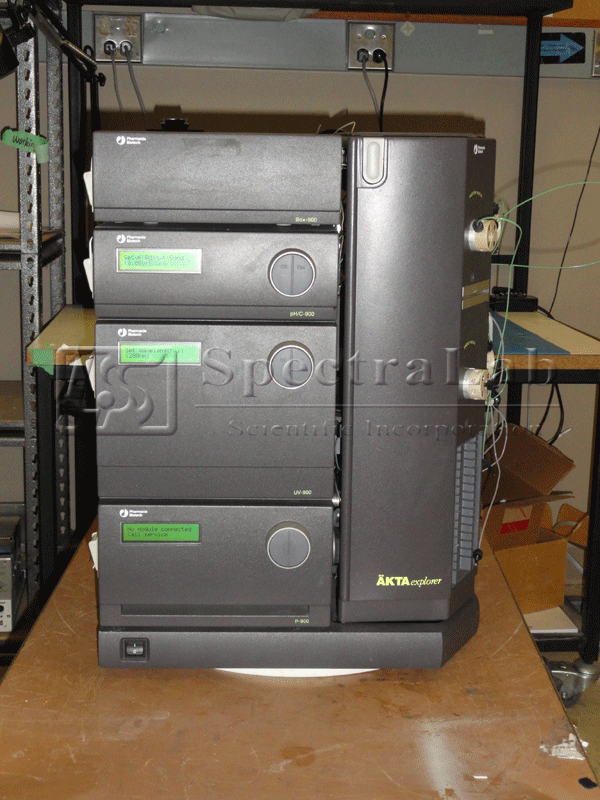

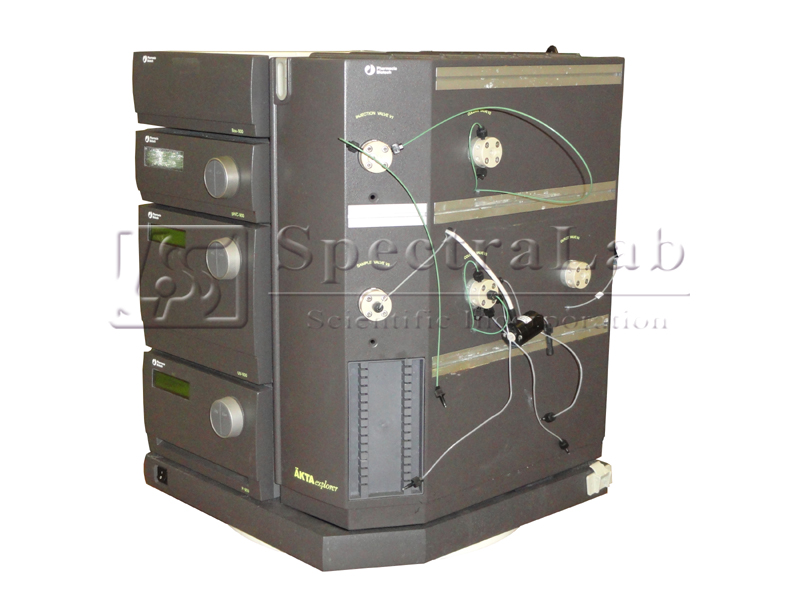

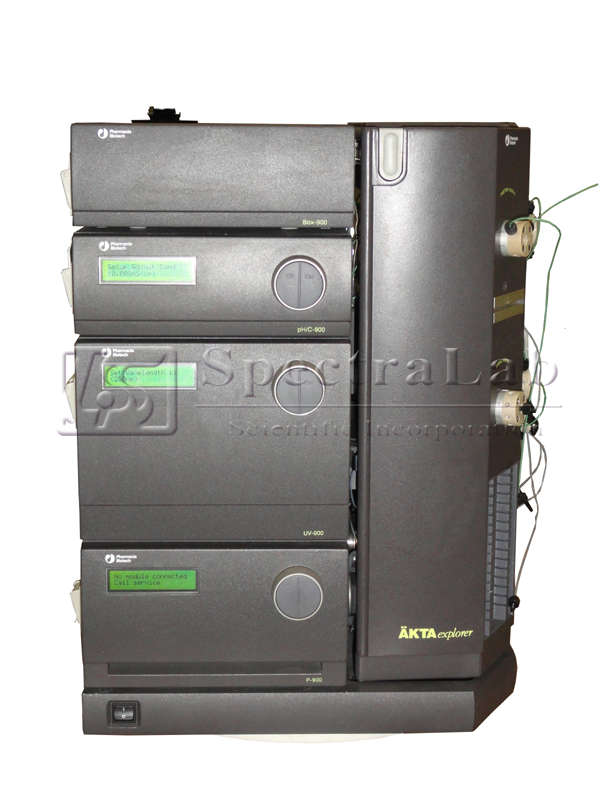

This Pharmacia Biotech AKTA Explorer 100 FPLC System is in good condition. It has been tested at SpectraLab Scientific.
A 90 days warranty is included.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
