Choose the PerkinElmer Frontier range of near-, mid- and far-IR Fourier Transform spectrometers for superior spectroscopic performance in demanding applications.

Powerful and adaptable, the Frontier meets all your current analysis needs and can be expanded as your research goals evolve. And with automated range switching, mid-, near-, or far-IR techniques are available at your fingertips. An exceptional signal-to-noise ratio and photometric performance assures optimal spectral performance to ensure best-in-class sensitivity. This configurable platform provides dependable, consistent and trouble-free operation through years of service.

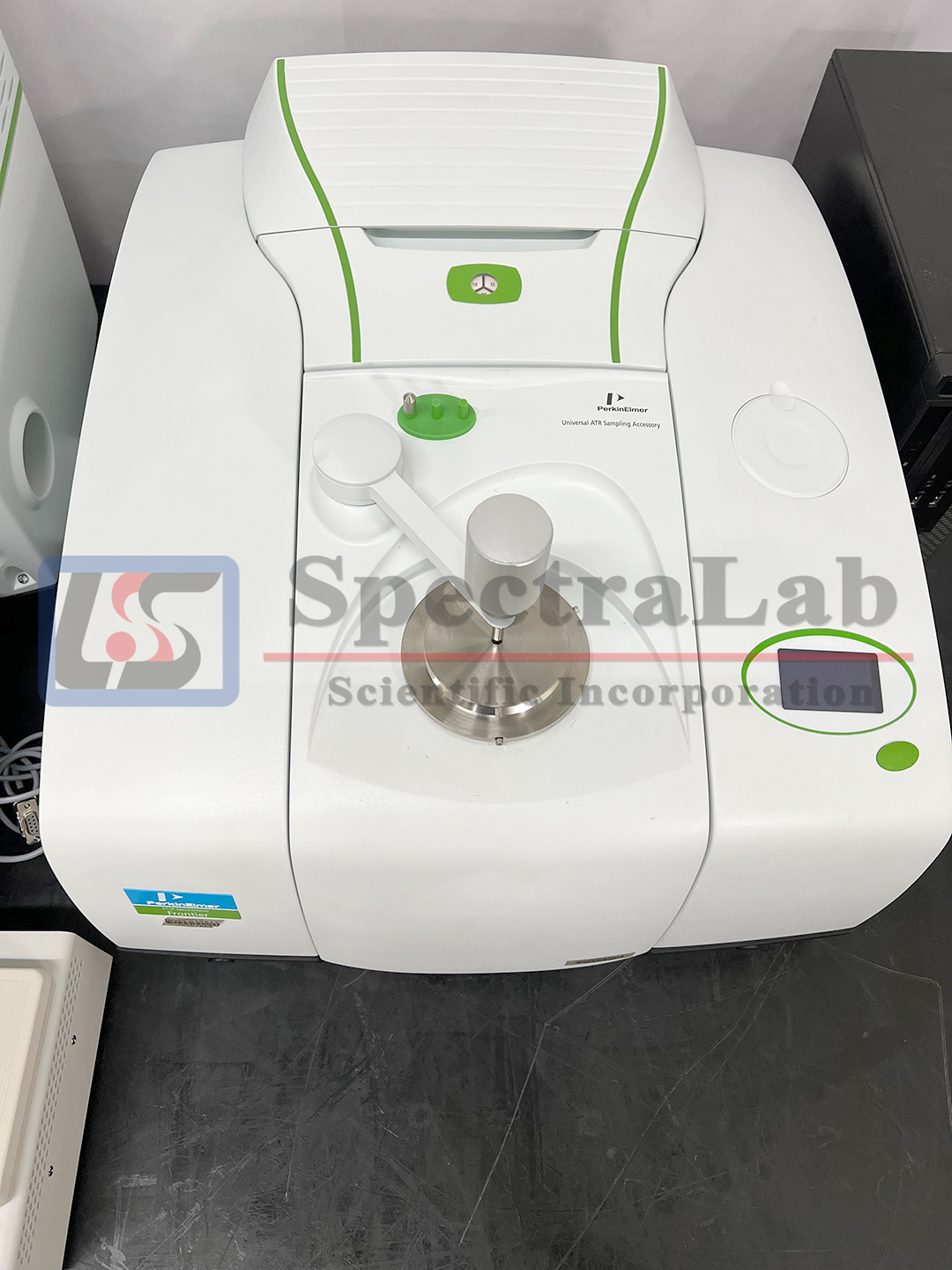

PerkinElmer Frontier IR/NIR systems: Dual range for optimized method development and materials testing.

Frontier IR/NIR provides unique mid-IR and near-IR dual range performance from a single instrument. Comparing methods on a common platform aids selection of the most suitable sampling techniques and measurement conditions for a particular application.

Automated set-up and range switching enables you to quickly move on to your next sample without manual reconfiguration. In turn, this increases your laboratory productivity and eliminates the need to purchase two instruments, saving valuable bench space and reducing training requirements.

SPOTLIGHT 200i

The Spotlight 200i FT-IR Microscopy System is designed with state-of-the-art technology to allow for intelligent automation and sophisticated analysis capabilities. The system utilizes a high performance single-point detector to deliver the best sensitivity, while white light LED illumination provides superior visible images. In addition, the Spotlight 200i also has the capability to be fully upgraded to the Spotlight 400 Imaging System.

Unique features of the Spotlight 200i System include:

• High quality spectral production from sample areas with diffraction limits as low as 10 microns
• Region of Interest (ROI) finding to allow for ease of analysis of multiple particles and layers all at once
• Capability for operation in transmission, reflectance, and automated micro-ATR modes for maximum sampling flexibility
• Configurability to be used with mid-IR, near-IR, or dual range FT-IR with the Frontier system to give maximum information from samples in the shortest possible time.

FT-IR Microscopy for Every Challenge

The Spotlight 200i FT-IR Microscopy System can be configured to meet your FT-IR microscopy demands and produce high-quality spectra from extremely small samples. See the Configurations table below for the standard options.

• Choice of a single element MCT (mercury cadmium telluride) (mid- or wide-band) detector, or a temperature-stabilized DTGS (deuterated triglycine sulfate) detector as standard configuration
• Micro-ATR objective with a choice of a silicon or germanium crystal
• Optional fully-integrated AutoATR objective that can be controlled through Spectrum software
• Standard motorized stage that can be controlled by a joystick or through Spectrum software
• White light LED illumination for true color display with capabilities for auto-illumination and autofocus modes
• Spectrum 10 software as standard with an option for enhanced security in Spectrum 10 ES

A variety of optional accessories and consumables are available for use with the Spotlight systems, such as an infrared polarizer kit, heated stage accessory, crystal compression cells, and a micro-sampling tool kit for ease with sample handling and preparation.

Microscopy for a Variety of Applications

Easy to use, yet exceptionally powerful and versatile, the Spotlight’s flexibility and sensitivity make it a perfect addition to any lab setting, in any discipline. Some of the applications supported by the Spotlight 200i System include:

• Materials Analysis
• Forensics
• Pharmaceuticals
• Biomedical Research
• Academic Research
• Biomaterials

Results Matter

The Spectrum 10 software suite drives the Spotlight 200i system and can support advanced FT-IR analysis in research and industrial laboratories, always providing optimal results. The software supplied with the system gives you full control over the microscope including the focusing on the sample, illumination, stage position, changing between sampling modes, and manipulating the spectra that you collect. The spectrometers can operate in ratio, single-beam, or interferogram mode. SpectrumIMAGE software enables control over the imaging system with the ability to view sample images with ease in real time. With Spectrum MultiSearch, identification of unknown mixtures is made simple through the use of comparison algorithms allowing for the separation and library matching of up to 10 components.

For regulated industries that demand secure IR quality testing, Spectrum 10 ES software is available and encompasses user access control, audit trailing, data security, and data integrity to ensure secure analyses to meet the technical demands of 21 CFR Part 11 compliance.

Specifications
