Standard Equipment
- ASME air receiver built with heavy gauge steel
- Vertical or horizontal mount
- U.L. approved pressure switch
- OSHA approved beltguard – totally enclosed
- ASME approved safety relief valve
- ASME approved discharge air
service valve - Slow V-belt drive
- Automatic start-stop control
- Large metal intake filter-silencers
- Manual condensate tank drain valve

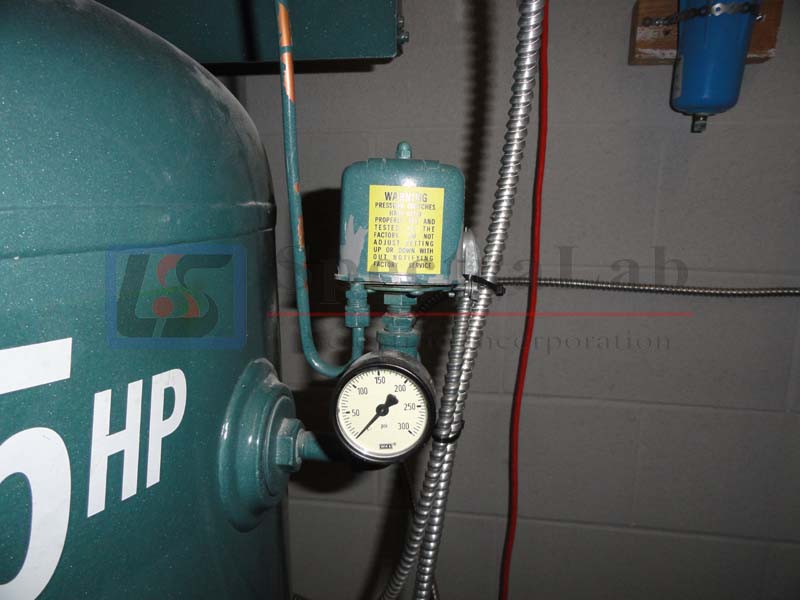

- Dial read-out pressure gauge indicator
- Low power consumption
- Loadless starting
- Factory oil filled
Specifications
Manufacturer FS CURTIS
Series CA
Model Vertical
Pressure 145 to 175 psi
Tank Capacity 80 gal

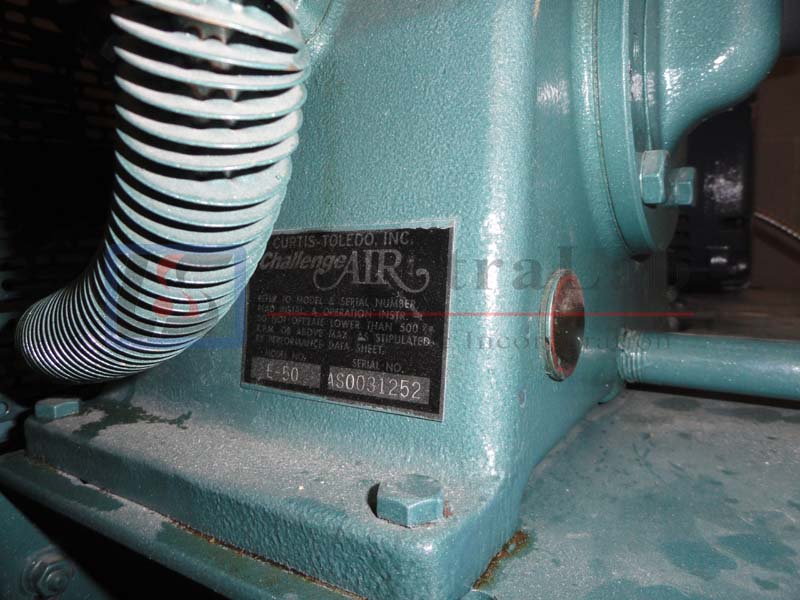

Pump E – 50
No. of Cylinders 3
Flow Rate at 175 psig 17.4 cfm
Approx. Weight 525 lbs
Dimension – Inches(L x W x H) 36 x 25 x 72
