Product Information

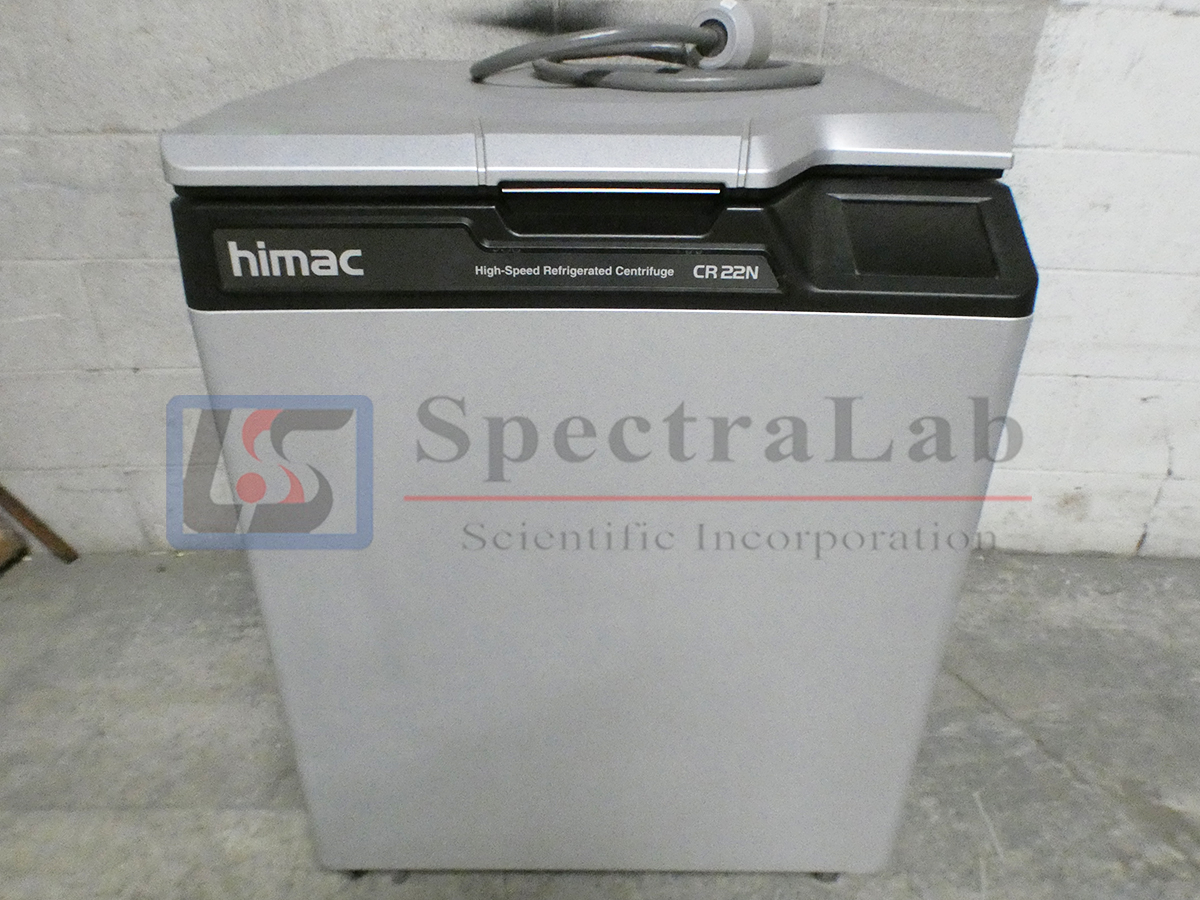

With high speeds up to 58,700 x g (Rotor R27A) and a capacity of up to 6 L per run, Centrifuge CR22N is the optimal solution for your everyday centrifugation tasks. A selection of 4 different kits are available for Centrifuge CR22N containing the rotor and consumables tailored to your applicational needs including various swing-bucket and fixed-angle rotors.
Whether your work requires harvesting of biomass in volumes of up to 6 L per run, pelleting of cells, subcellular organelles or larger viruses, or extraction, precipitation, concentration and purification of nucleic acids in up to 50 mL tubes, the high-speed Centrifuge CR22N is the optimal solution to support your everyday centrifugation tasks.
The innovative 4 x 1.5 L Rotor R9A2 in combination with our unique triangular 1.5 L bottles helps to speed up the biomass harvesting workflow by reducing the amount of bottles that need to be handled. The large touch operation panel with up to 30 programs provides quick and easy operation. The user management and documentation function supports customers working in a regulated environment. Additionally, the self-locking rotor system with immediate rotor recognition and sophisticated safety features ensure safe and convenient everyday operation of the device.
Features:
- Easy operation with color touch-sensitive LCD

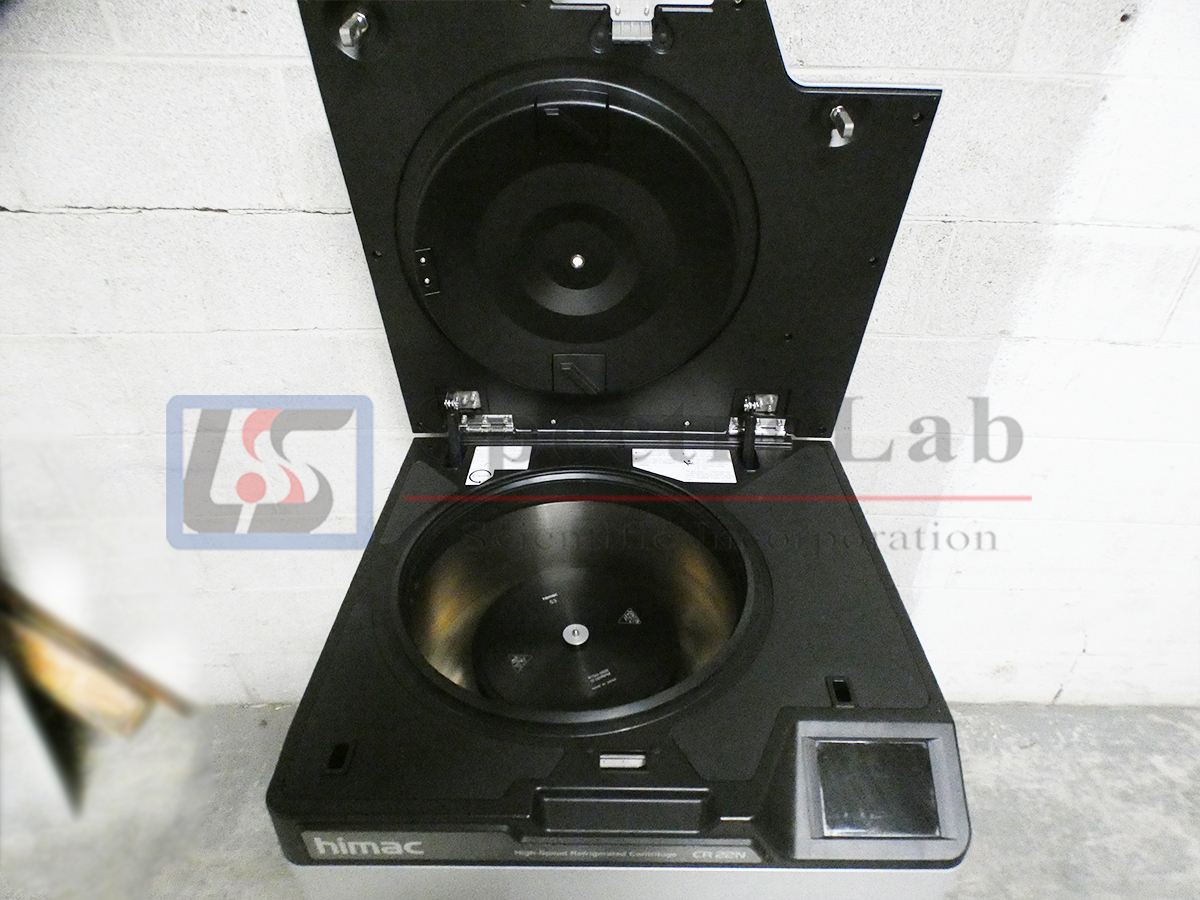

- Self-locking rotor system
- All standard rotors maintained at 4 ℃
- Non-contact imbalance detection system
- Economy mode (automatic standby function)
- Re-generative Converter for Braking
- Automatic rotor identification
- Automatic rotor cover detector
- Pre-cool function
- Zoom function
- User administration
- User Lockout Function
- USB, LAN
Specifications
| Model | CR22N | |
|---|---|---|
| Max. Speed | 22,000 rpm | |
| Max. RCF | 58,700 xg (R27A Fixed angle rotor) | |
| Max. Capacity | 1,500ml x 4 bottles (R9A2 Fixed angle rotor) | |
| Speed Control Range | from 300 to 22,000 rpm | |
| Temperature Control Range | from -20 to +40 °C | |
| Acceleration / Deceleration Mode | Acceleration : 9 modes, Deceleration : 9 modes with free coasting (Deceleration mode changeable in decelerating to shift mode or free coasting) |
|
| Program Function | 30 programs, with RCF / g • sec function | |
| Drive Unit | Induction Motor (Inverter) | |
| Refrigerator | Closed Inverter Rotary Type (Refrigerant : R410A) | |
| Safety Function | Interlock Door, Dual Over Speed Detection Non-contact Imbalance Detection, Abnormal Temp. Detection etc. |
|
| Variable Deceleration Slope | Yes (beside Deceleration mode, moderate deceleration or free coast is selectable.) |
|
| User Lockout Function | Yes | |

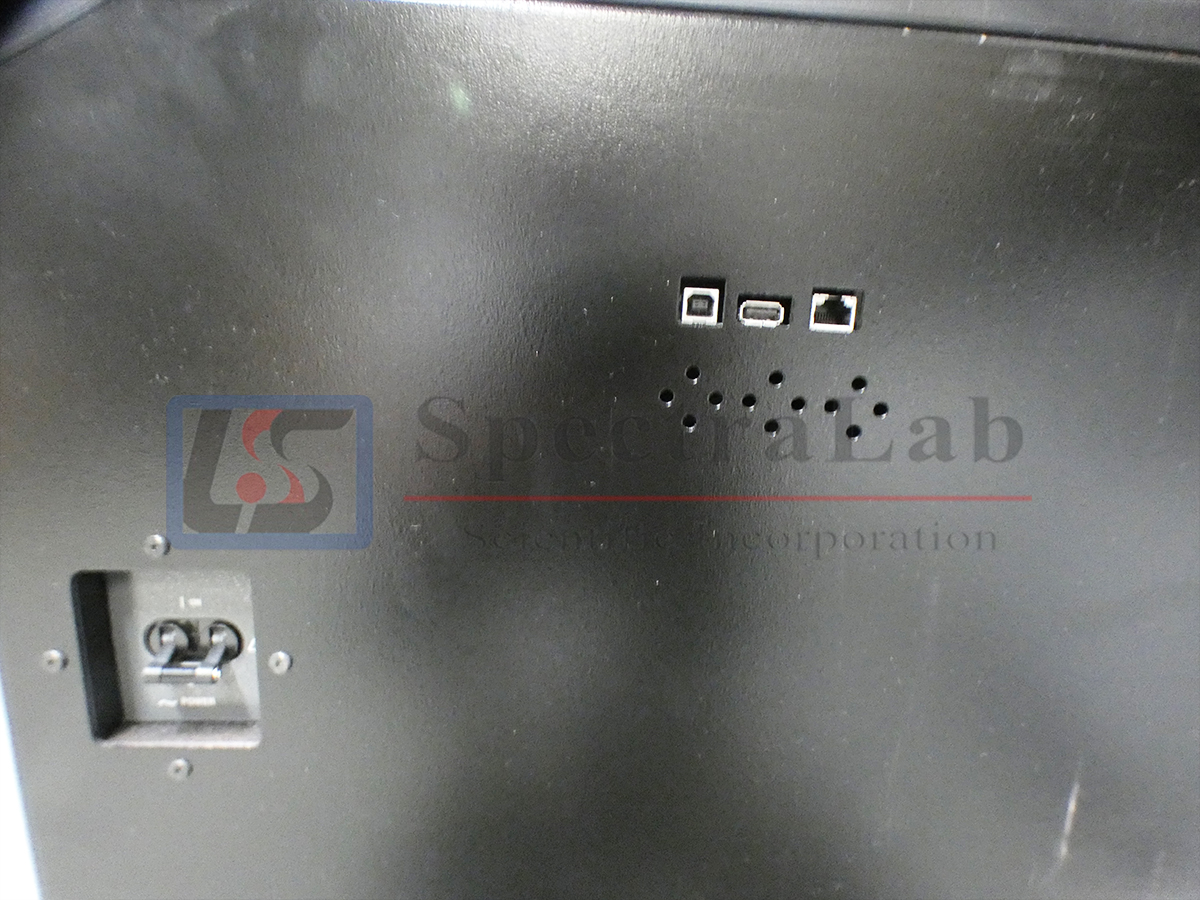

| Data Communication | USB port (operating history can be output through USB port.) | |
| Operating Log Management | LAN port : factory option or on-site modification PC and optional \”himac LogManager Ver. 5.0 for Windows® (Network Edition)\” is required. Supporting GLP / GMP |
|
| Display * | 5.7 inch color touch-sensitive LCD panel | |
| Keypad | Pop-up keyboard and icons on the display | |
| Noise | 64dB(A) at 1m front (at 22,000 rpm) | |
| Economy Mode | Yes | |
| Continuous Flow Rotor | N/A | |
| Standard | CE marking complied cCSAus certificated *** |
|
| (1) EMC Directive | EN61326-1 | |
| (2) LVD and MD **** | EN61010-1, EN61010-2-020 | |
| Dimensions | 700 (W) x 760* (D) x 915 (H) mm (height to chamber : 853 mm) *Measurement including rear duct ass\’y |
|
| Weight | 260 kg | |

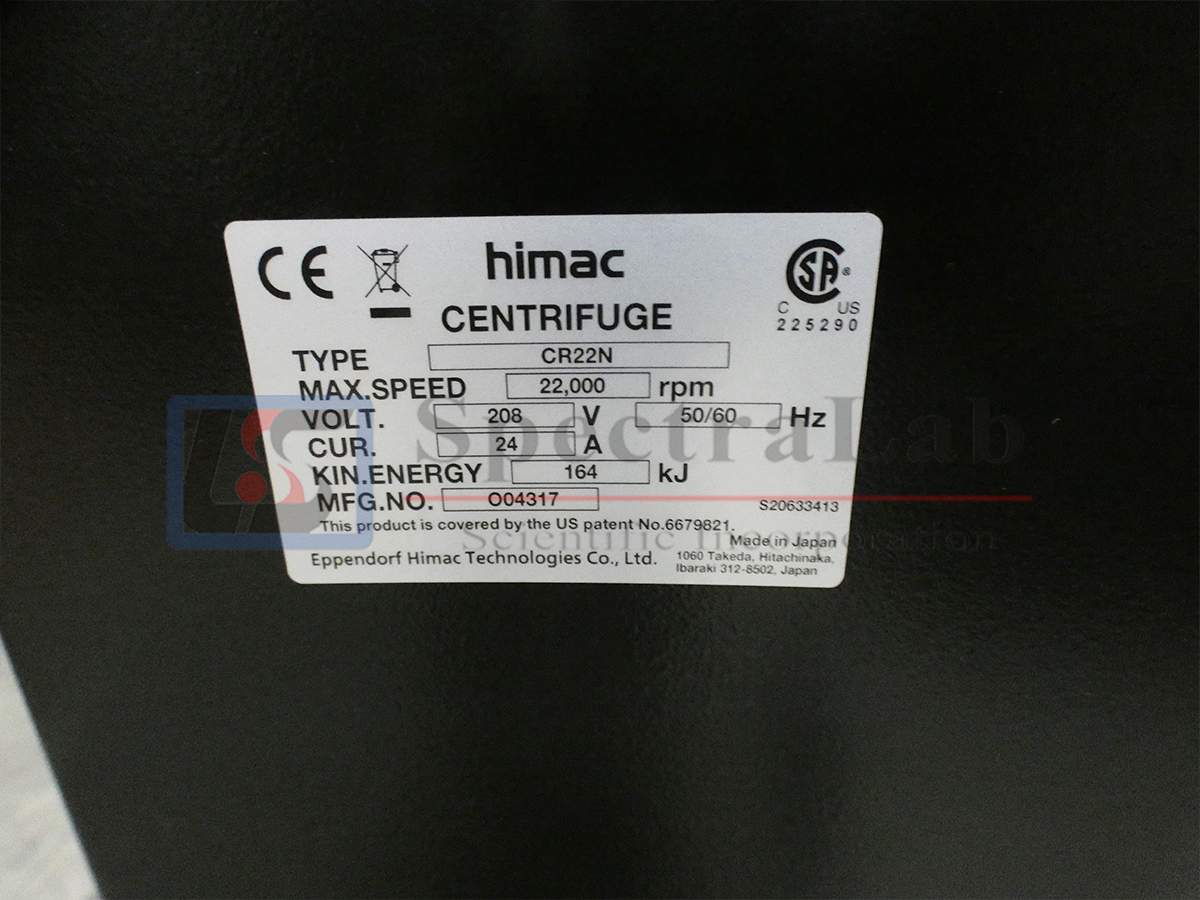

| Power Requirement | Single Phase, AC200 / 208 / 220 / 230 / 240V +/-10%, 50/60Hz, 30A | |
| Material No. (Asia / Pacific / Middle East) | 5721220011 | |
| Material No. (EU market / India) | 5721220012 ** | |
| Material No. (US / Canada) | 5721220013 *** |
