The Spectra Analysis DiscovIR-LC LCIR System is an enhanced resolution infrared detection system for HPLC.
Features:
- Micro-Deposition on Cryogenically- Cooled IR-transparent disc
- Unique, Proprietary LC interface removes solvent interference
- Collects real-time IR spectrum automatically
- Online analysis
- No sample handling
Set Includes:

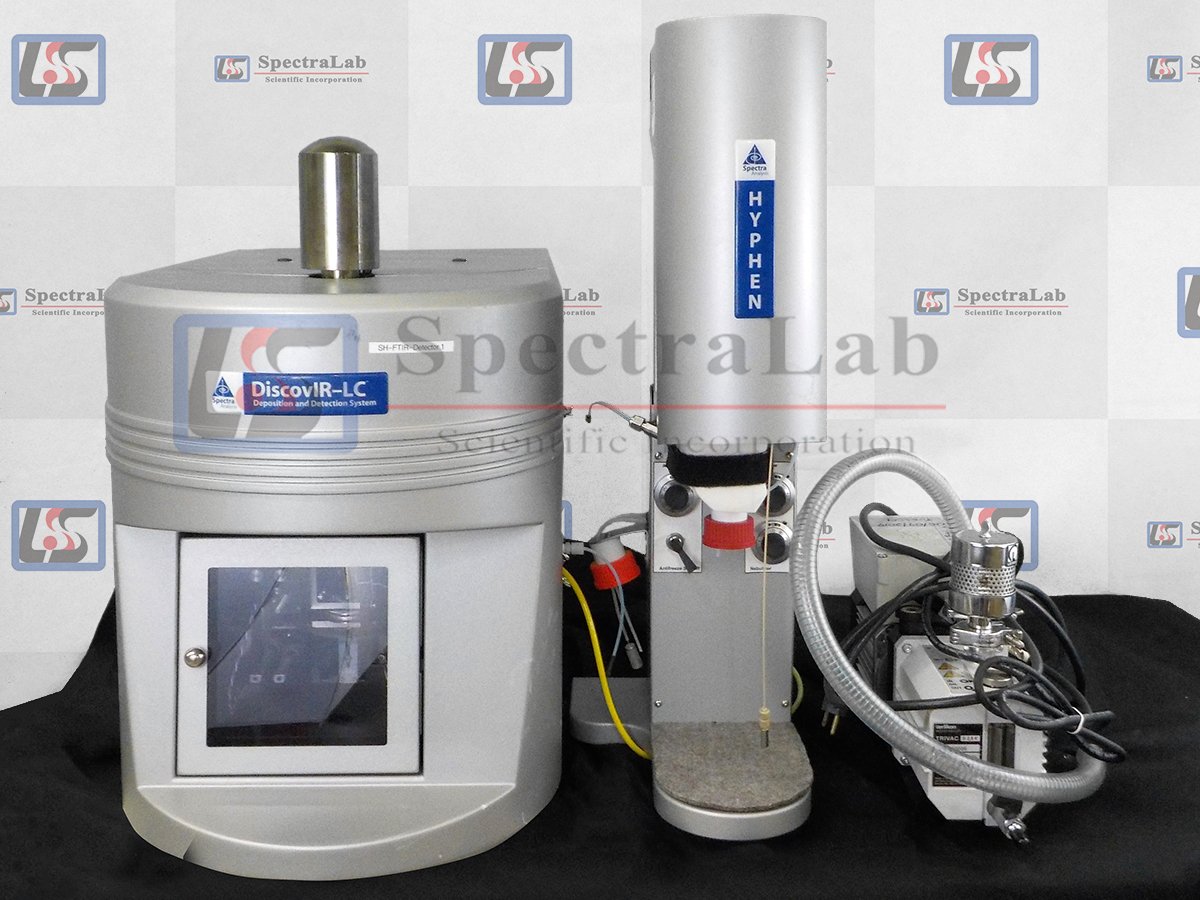

- Spectra Analysis DiscovIR-LC Deposition and Detection System

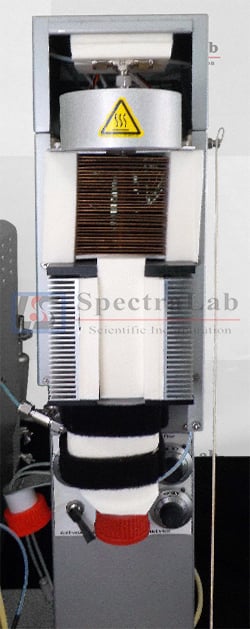

- Spectra Analysis Hyphen

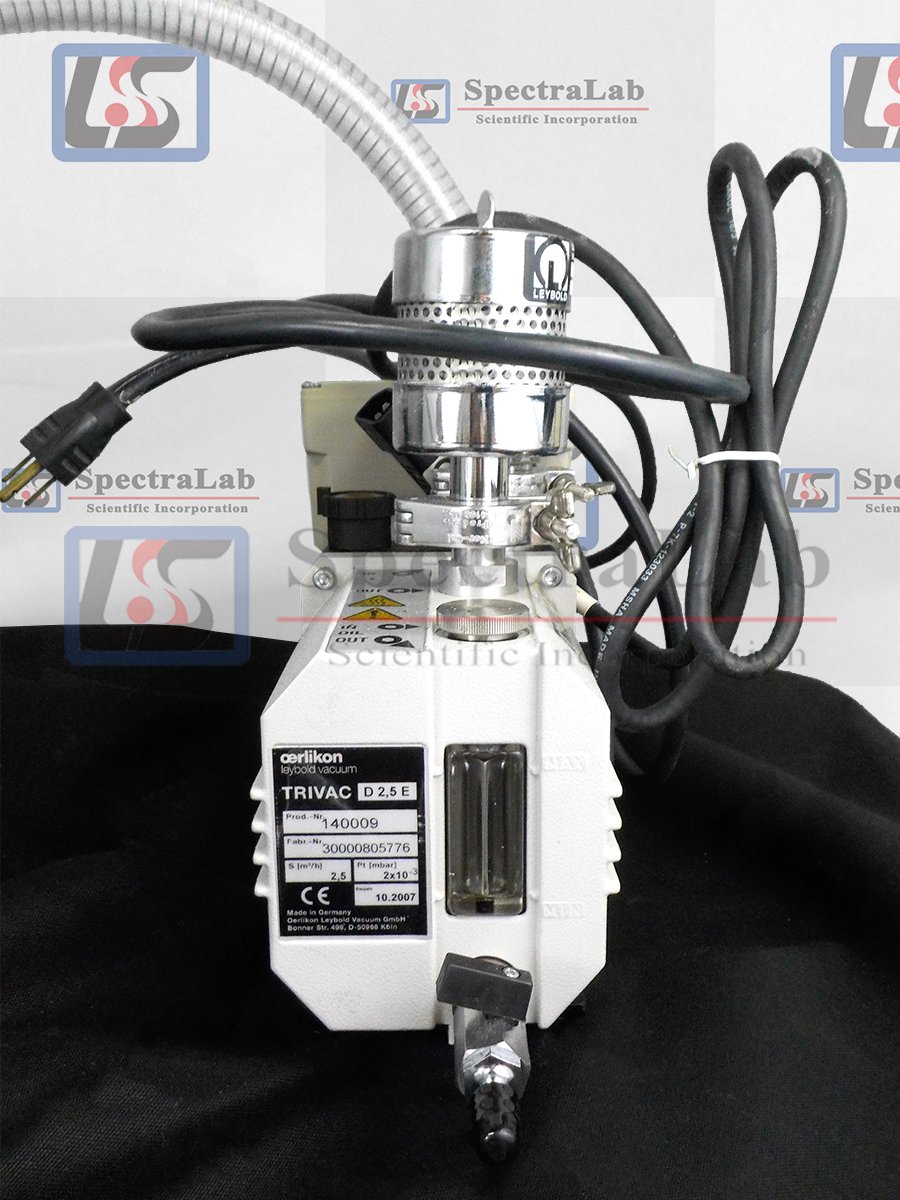

- Oerlikon Leybold Vacuum
- Necessary cables, funnels, and other supplies
- Manuals and other documents
Specifications:
Type | Specifications |
---|---|
Operating Principle | Direct deposition of column eluent on moving ZnSe sample disc |
IR Spectrometer | Built-in FTIR |
IR Detector | 0.1 mm MCT |
Wavenumber Range | 4000–650 cm-1 |
Data Collection | Real-time, with post-run analysis available |
Spectrum Type | Transmittance through disc and solid-phase sample |
Window Capacity | 12-24 hours of chromatography |
Window Temperature | -100°C to +50°C |
