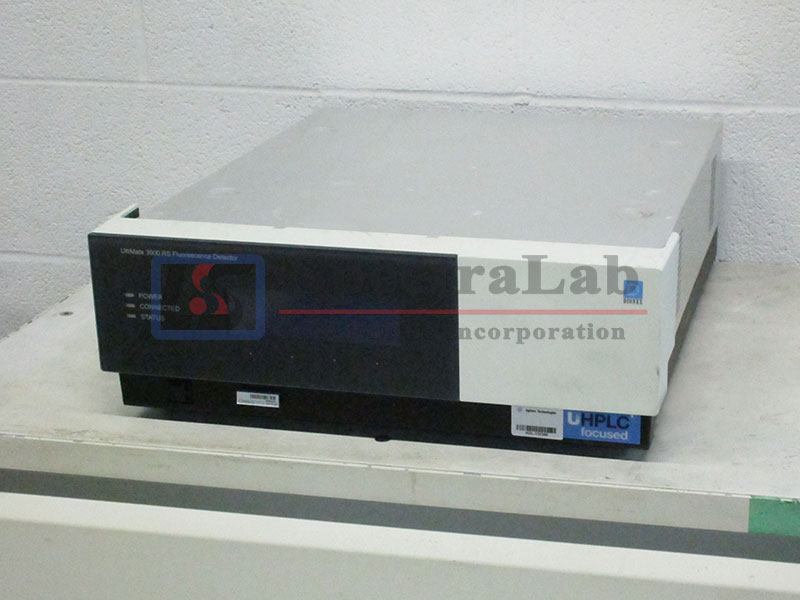

The Thermo Scientific Dionex UltiMate 3000 FLD-3000 is a high-sensitivity fluorescence detector series for UltiMate 3000 HPLC systems. The optics of the FLD-3000 series provide maximum stray-light suppression for best detection sensitivity. Operated with the Thermo Scientific Dionex Chromeleon Chromatography Data System (CDS) software, the detector provides automated qualification, various tools for method development, and instrument wellness monitoring for ease of use, maximum uptime, and the highest degree of regulatory compliance.
Light Source: | Xenon Flash Lamp |
Lamp Pulse Frequency: | HighPower (~300 Hz); Standard (~100 Hz); LongLife (~20 Hz) |
Single wavelength: | up to 100 Hz |
Spectrum Scanning Modes: | 2D or 3D excitation, emission or synchro scans (3D scans under Chromeleon 7.1 or later) |
Wavelength Range: Variant Ex Min Ex Max Em Min Em Max | FLD-3100 200 630 265 650 |
Spectral Bandwidth: | Excitation: 20 nm |
Emission: 20 nm | Fixed, 280 nm (FLD-3100) |
No. of Fluorescence Channels: | 1 (FLD-3100) |
Excitation/Emission Wavelength Switching Time: | < 250 ms |
Wavelength Accuracy: | ±2 nm |
Wavelength Repeatability: | ±0.2 nm |
Sensitivity: Raman S/N: | > 550 ASTM over the entire lifetime of the lamp (> 2100 using dark signal as noise reference) |
Flow Cell Thermostatting: | Ambient + 15 °C to 50 °C |
Flow Cells: | Analytical flow cell volume: 8 μL |
PC Connection: | All functions controllable through USB |
GLP Features: | Automatic Equipment Qualification (Dionex AutoQ), System Wellness, and Qualification Monitoring withChromeleon CDS, cell i.d.-chip |
Dimensions (h × w × d): | 16 × 42 × 51 cm (6.3 × 16.5 × 20 in.) |
Weight: | 18 kg |
