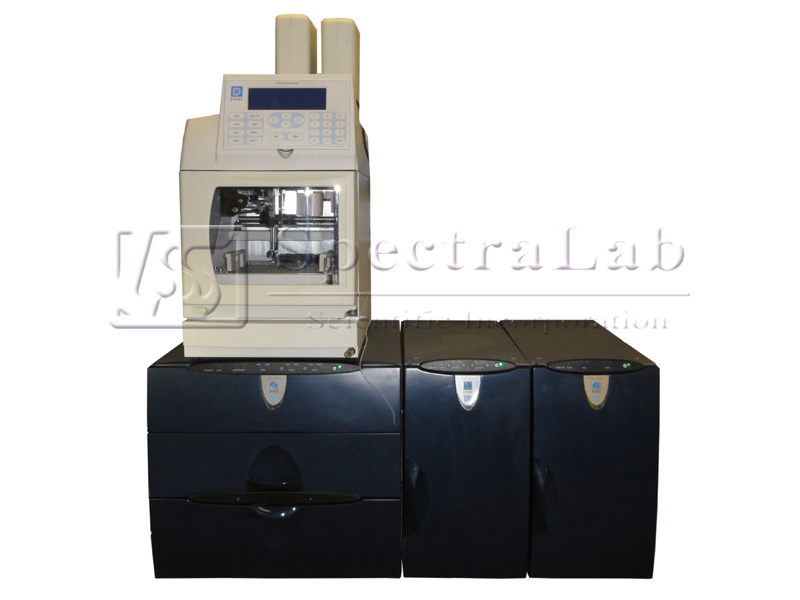

Name: Dionex Ics-5000 Ion Chromatography System
Brand: Dionex
SKU: Dionex-02-0630
Price: 1 USD
Availability: InStock

Features

The ICS-5000 Reagent-Free™ IC (RFIC™) system with Eluent Generation is the world’s first capillary IC system. Developed with flexibility, modularity, and ease-of-use in mind, the ICS-5000 combines the highest sensitivity with convenience.

With the ability to analyze samples at capillary, microbore, or standard flow rates (or any combination of two, in a dual system), the system is simply Always Ready. The wide variety of ICS-5000 modules allows you to configure an ion chromatography system designed specifically to provide the solutions you need.

The Dionex ICS-5000 is the first system with an all-PEEK flow path capable of operating continuously at 5000 psi. Reagent-Free HPIC systems redefine the way ion chromatography is performed.

This Dionex Ics-5000 Ion Chromatography System includes:

Dionex ICS-5000 Dual Pump (DP)
Dionex ICS-5000 Eluent Generator (EG)
Dionex ICS-5000 Detector/Chromatography Module
Dionex AS-50 Autosampler
A 90-day warranty

This refurbished Dionex Ics-5000 Ion Chromatography System is in great condition. It has been tested at SpectraLab Scientific.

We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.

Thanks for looking and we look forward to hearing from you!

Dionex ICS-5000 Dual Pump(DP)

Specifications
Type	Dual-piston (in series), microprocessor-controlled, constant-stroke, variable-speed, patented isokinetic Eluent Precompression
Construction	Chemically inert, metal-free PEEK pump heads and flow path; compatible with aqueous eluents from pH 0–14 and reversed-phase solvents
Pressure Range	0–41 MPa (0–6000 psi)
Flow Rate Range	Analytical: 0.000–10.000 mL/min with settable flow increments at 0.001 mL/min Capillary: 0.001–3.000 mL/min with settable flow increments at 0.0001 mL/min
Flow Rate Precision	<0.1%
Flow Rate Accuracy	<0.1% at 14 MPa (2000 psi)
Pressure Ripple	Analytical: < 1.0% at 1.0 mL/min typical Capillary: < 0.2% (with damper) or < 1.0% (without damper) at 10 μL/min
Pressure	None required
Vacuum Degasser	Integrated degasser with 1 channel for isocratic pump or 4 channels for quaternary pump; optional
Piston Seal Wash	Automatic operation, standard
Gradient Formation	Quaternary low pressure (Analytical only) or electrolytic eluent generation at high pressure (Analytical and Capillary)
RFIC-EG Gradients	Analytical: 0.1–100 mM Capillary: 0.1–200 mM
Gradient Profiles	Any combination of an unlimited number of linear, convex, and concave positive and negative gradient profiles
Gradient Proportioning Accuracy and Precision (Analytical only)	±0.5% at 2 mL/min
Gradient Mixing (Analytical only)	Passive mixers for 2 mm and 4 mm ID columns, Optional
Eluent Generation	Eluent generation (RFIC-EG), optional
Eluent On/Off Valve	Electrically-actuated, standard
Leak Sensor	Optical, standard

Dionex ICS-5000 Eluent Generator (EG)

Specification
Minimum and Maximum Eluent Concentrations	0.01–100 mM (Analytical) 0.01–200 mM (Capillary)
Flow Rates	0.100–3.000 mL/min (Analytical) 0.001–0.030 mL/min (Capillary)
Eluent Types	KOH, LiOH, NaOH Carbonate Carbonate/bicarbonate Carbonate with pH modifier MSA
Maximum Operating Pressure	35 MPa (5000 psi)
Maximum Solvent Concentration	Cations: None Anions: 25% methanol
Gradient Profiles	Standard—any combination of an unlimited number of linear, convex, and concave positive and negative gradient profiles
Number of Cartridges Supported	Two—dual cartridge support

Dionex ICS-5000 Detector/Chromatography Module

Specification
DC models:	Dual Temperature Model Only
Dual Temperature Model: independent temperature control	Upper Section Temp. Range: 10–40 °C Lower Section Temp. Range: 10–70 °C Temperature Accuracy: ± 0.5 °C Temperature Stability: ± 0.2 °C Temperature Precision: ± 0.2 °C
Lower Zone: (Analytical)	Injection valves: 1 or 2 ea., 6 or 10 port Up to two column sets, 1–9 mm Maximum column length: 250 mm Precolumn heat exchangers: 2
Cap IC Cube: (Optional – but required for capillary chemistries)	1 or 2 IC Cube™ modules hold the following: Injection Valves: Up to 2 (one per cube) high pressure valves, 4-port, 2 position EG Degasser Column and Guard Carbonate Removal Device Capillary Suppressor (See Suppressor section) IC Cubes and cartridges are customer installable with preformed tubing and color-coded labeling Capillary column heater 15 to 85 °C
Automation Manager: (Optional)	Injection valves: Up to 2 ea., high pressure valves, either 6 or 10 port Low pressure valves: Up to 2 ea., PTFE, 2 or 3 way Reaction Coil Heater: Holds up to two reaction coils Temperature Range: 5 °C above DC, up to 80 °C
Leak detection:	Optical leak sensor

Dionex AS-50 Autosampler

Specification
Injections Per Vial	1 to 99
Vial Sizes Available	0.3 mL polymer vials (P/N 055428, package of 100) 1.5 mL glass vials (P/N 055427, package of 100) 10 mL PolyVials (P/N 055058, package of 100)
Variable Volume Range	1 to 100 µL in 0.1 µL increments 100 to 1000 mL in 1 µL increments
Injection Loop Size	IC version: 25 µL standard; other sizes are available HPLC version: 20 µL standard; other sizes are available
Injection	Two-position, six-port, electrically-activated Rheodyne valve IC version: PEEK with Tefzel® rotor seal HPLC version: Stainless steel with Vespel® rotor seal
Column Switching	Two-position, ten-port, electrically-activated Rheodyne valve IC version: PEEK with Tefzel rotor seal HPLC version: Stainless steel with Vespel rotor seal
