Overall

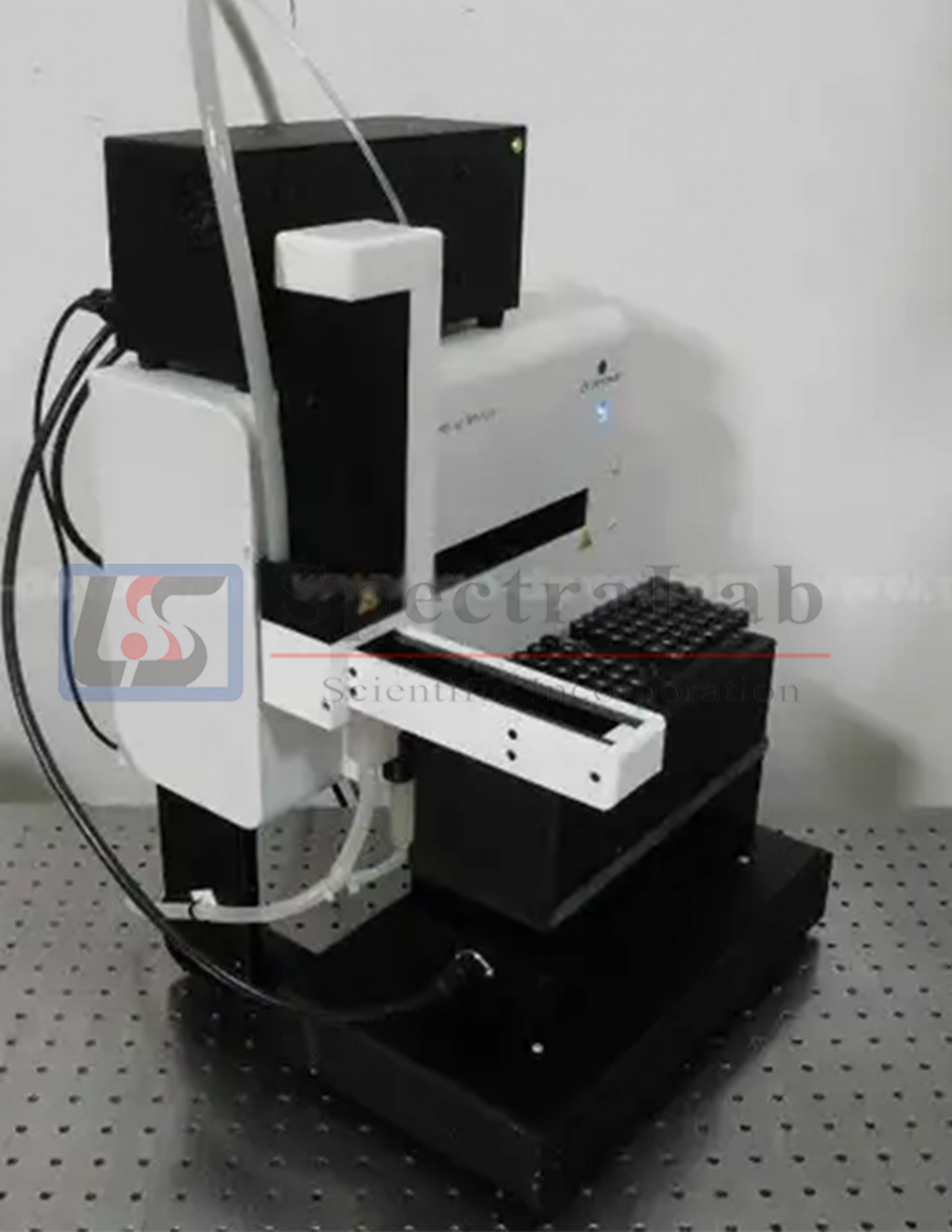

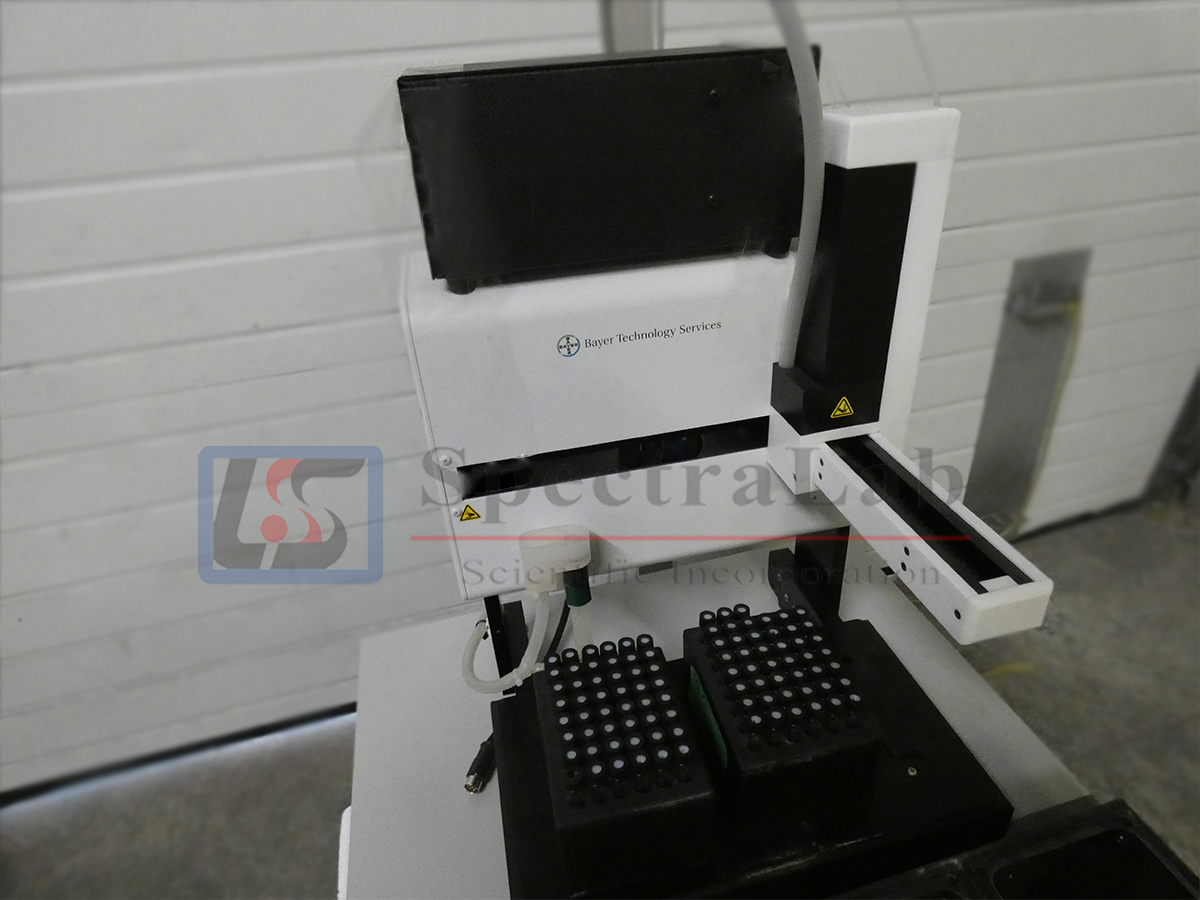

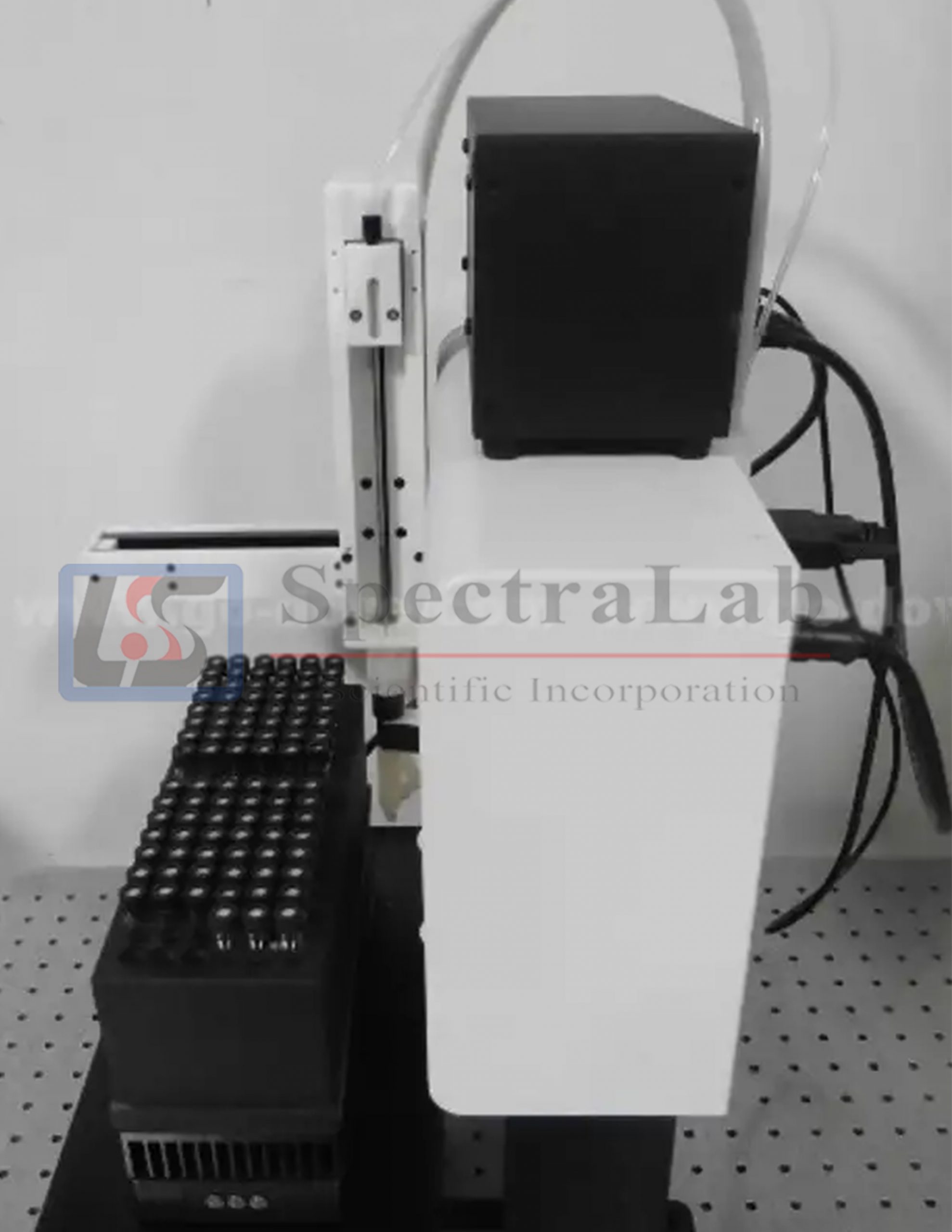

The ASX-7000 Series OEM automation platform allows our customers to find the solution that they need. System was developed to scale in size and height to serve a wide range of industries. Sample volumes from 5 µL to 800 mL are all utilized on one platform. Teledyne CETAC works with our partners to ensure that their needs are being met. The autosampler was developed with accuracy in mind enabling the use of 384 well micro titer plates.
The ASX-7000 series platform is capable of precisely delivering racks and/or vials to user defined locations.
Septum Piercing
Experience with many applications ranging from single to multiple septum piercing.

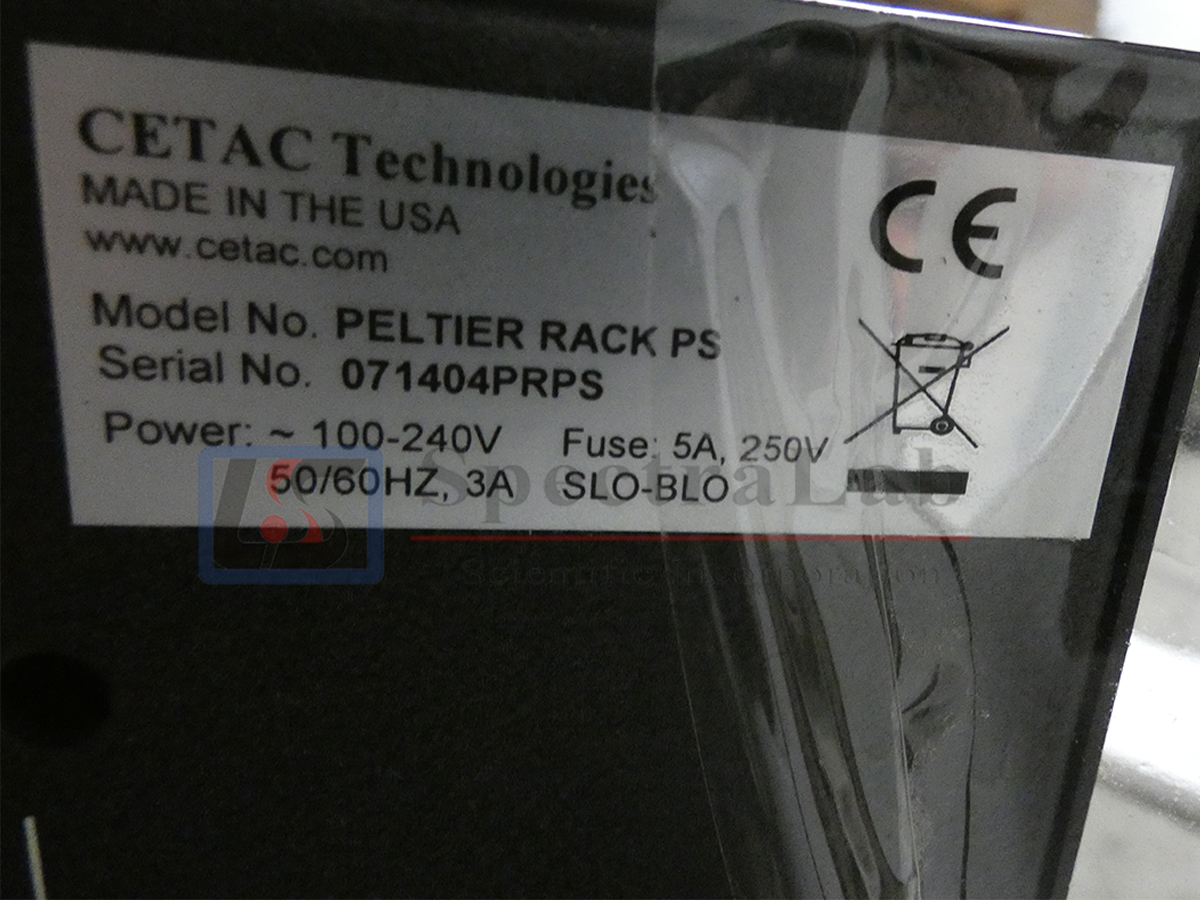

Temperature Control
Cooling/heating option allows computer controlled temperature control of samples from 1°C to 70°C.
Fraction Collection
Fraction collection and autosampling in one platform. Combining two techniques reduces required bench space.
Syringe Pumps
Accommodates multiple syringe pumps and a wide range of available syringes with volumes from 25 µL to 50 mL.

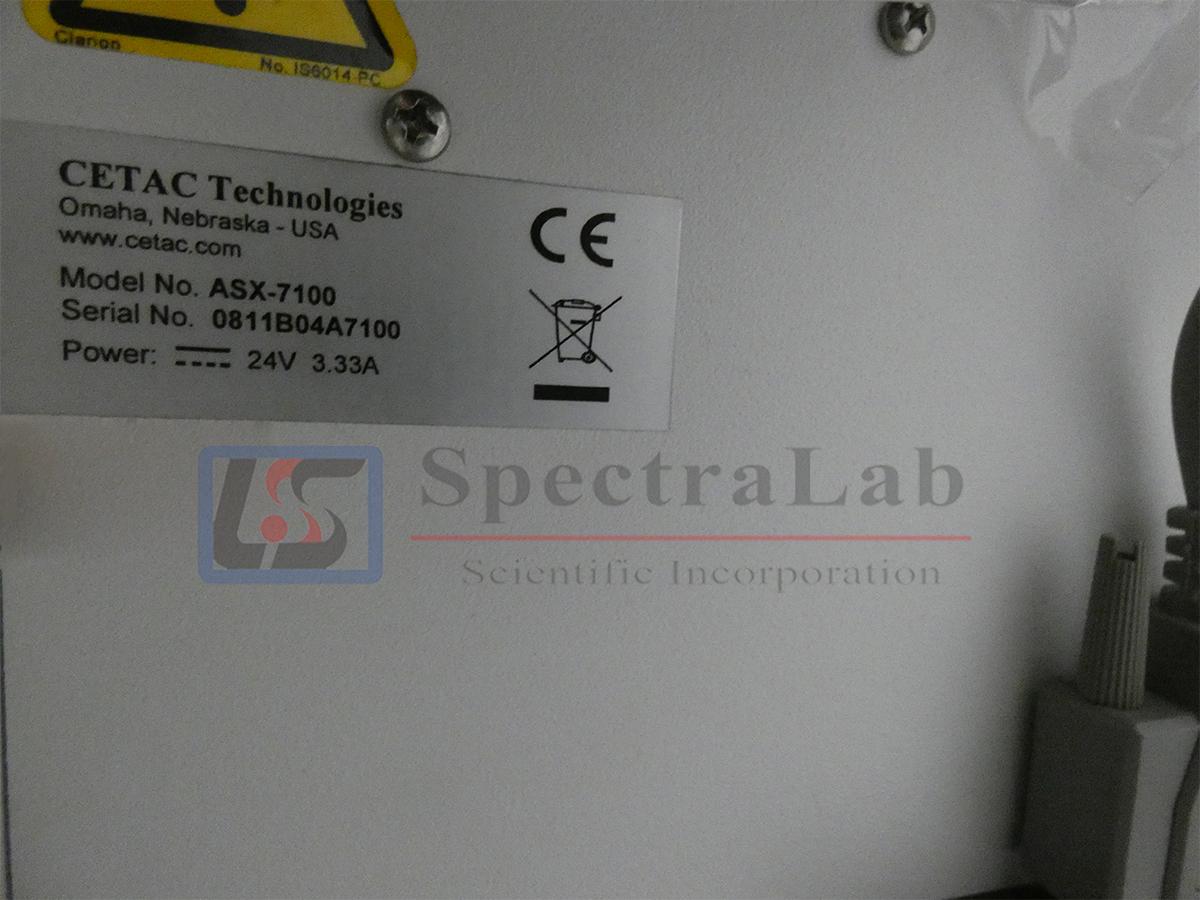

| Model No. | ASX-7100 |
| Space Requirements cm (in) (W x D x H) | 37 x 39 x 46 (14 x 15 x 18) |
| Working Area cm (in) (W x D) | 25.4 x 15.3 (10 x 6) |
| Z-Axis Sizes | Single Z Axis – 100 mm
Single Z Axis – 150 mm Single Z Axis – 200 mm Dual Independent Z Axis – 150 mm |
| Available Heights | 150 mm
200 mm 250 mm 325 mm |
| Probe Positioning Resolution | 384 well microtiter plates |
| Drive Arm Capacity | Max load for Y-axis arm – 22.2 N / 2.27 kg / 5.0 lbs |
| Vertical Punch Force | Z-axis force = 31.4 N / 3.2 kg / 7.0 lbs |
| Max Axis Speed (mm/s) | X Axis = 163
Y Axis = 142 Z Axis = 71 |
| Weight | 18 kg (39 lbs) |
| Communications Interface | RS-232 or USB
4 Auxiliary Inputs / 4 Auxiliary Outputs |
| Power Requirements | 100-240 VAC, 47-63Hz, 1.9A |
