The Teledyne Cetac ASX-7400 OEM Autosampler was developed to handle the specific requirements of OEM customers needing robust, high-precision automation. The autosamplers of the ASX-7400 platform provide the accuracy needed to operate with 384 micro-titer wells and are able to perform difficult operations such as septum piercing and pick and place operations.
The ASX-7400 OEM platform platform design allows the height, depth and tray requirements to be easily modified. Additional options and modules create a custom autosampler for your specific application. This model is now owned by Agilent, and is good for use with their ICP-MS systems.
Specification | Details |
ASX-7400 Dimensions (H x W x D) / Weight | 57 cm (22″) x 54 cm (21″) x 46 cm (18″) / 23 kg (50 lbs) |
Z-Axis Options | Single Z Axis – 100 mm Single Z Axis – 150 mm Single Z Axis – 200 mm Dual Independent Z Axis – 150 mm |
Available Height Options | 150 mm, 200 mm, 250 mm, 325 mm |
Probe Positioning Resolution | 384 well compatible |
Z Arm Drive Capacity | Max. load for Y-axis arm – 22.2 N / 2.27 kg / 5.0 lbs |
Vertical Punch Force | Z-axis force = 31.4 N / 3.2 kg / 7.0 lbs |
Max. Axis Speed (mm/s) | X Axis = 163 mm/s Y Axis = 142 mm/s Z Axis = 71 mm/s |
Communication Interface | 1 Serial Ports 1 USB Port 4 Auxiliary Inputs / 4 Auxiliary Outputs |
Power Requirements | 100-240 VAC, 47-63Hz, 1.9A |
Racks and Vials | Accommodates most commercially available racks Supports 2 mL vials to 500 mL bottles Supports SBS microtiter wells (384, 96) Custom racks available |

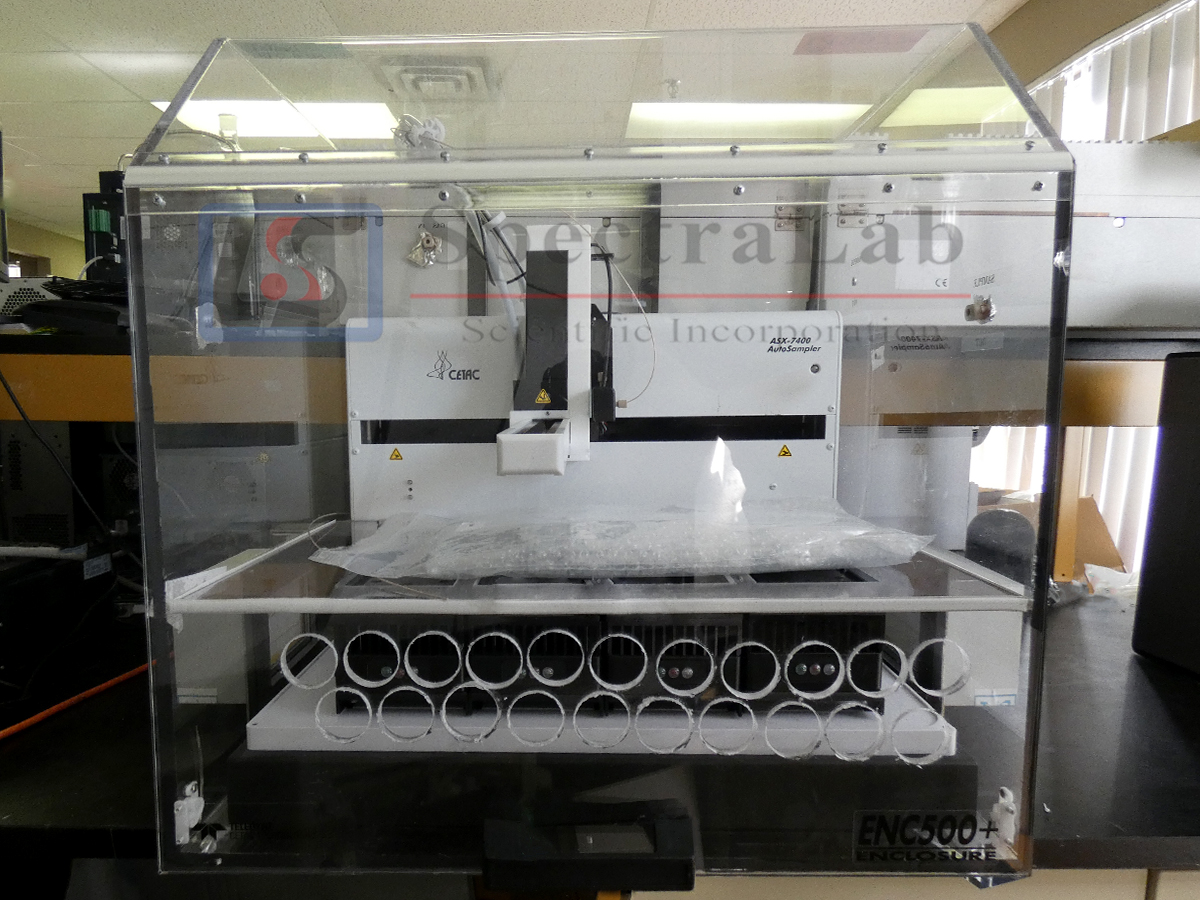

This refurbished ASX-7400 OEM autosampler is in good condition. It has been tested here at SpectraLab Scientific. Includes brand new sample racks, ENC500+ enclosure and a 90-day warranty.
