The Bruker corporation 450 GC is a powerful sample preparation and analysis tool for the Analytical Chemist.
Dimensions and Weights
Size*: Height: 53 cm (20.9 in.),
Width: 66 cm (26.0 in.),
Depth: 56 cm (22.0 in.)
Weight*: 43 kg (95 lb)
* Typical values
Environmental Conditions
Operating temperatures: 10 °C to 40 °C.
Operating humidity (relative): 5 % to 95 %

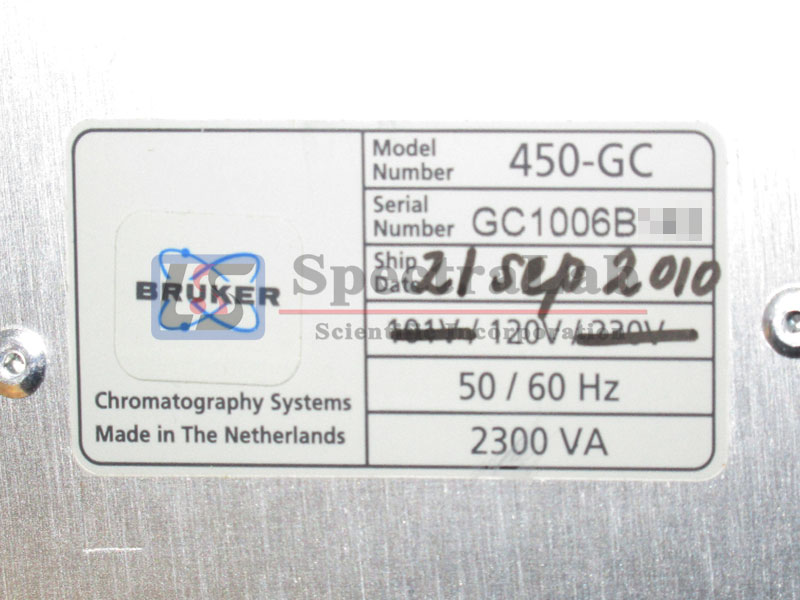

Line voltage requirements: 101 V, 120 V, 230 V
(±10 % nominal)
Column Oven
Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)
Temperature range:
Ambient +4 °C to 450 °C
With liquid N2: -100 °C to 450 °C
With liquid CO2: -60 °C to 450 °C
Temperature program ramps/holds: 24/25
Maximum temperature ramp rate: 120 °C/min for all voltages
Cool down rate: 400 °C to 50 °C in 4.5 minutes
Temperature set-point resolution: 1 °C
General Specifications
GC Control:
External events (digital output):
7 standard
8 optional
Max number of timed events: 15 x 99
Heated zones: 7 (including column oven)
Methods:
Maximum stored methods: 50 (max 30 alphanumeric characters)
Logging:
Run log file (stored with the chromatogram when using Galaxie or MS Workstation)
Error log file
Local Display:
TFT full color screen
VGA resolution (640 x 480)
Size 8.4” (20 cm)
Local Control:
Touch screen
Hard keys
Languages: English, German, French, Spanish, Italian, Portuguese, Cyrillic, Kanji, Chinese, Thai and Korean (Other languages on request)
Local automation:
Method lines: 25
Modes:
Infinite looping
Dual and duplicate injection
System operational qualities:
High Inertness: sample path UltiMetal treated, optional
Low level detection assurance: purged valves, optional

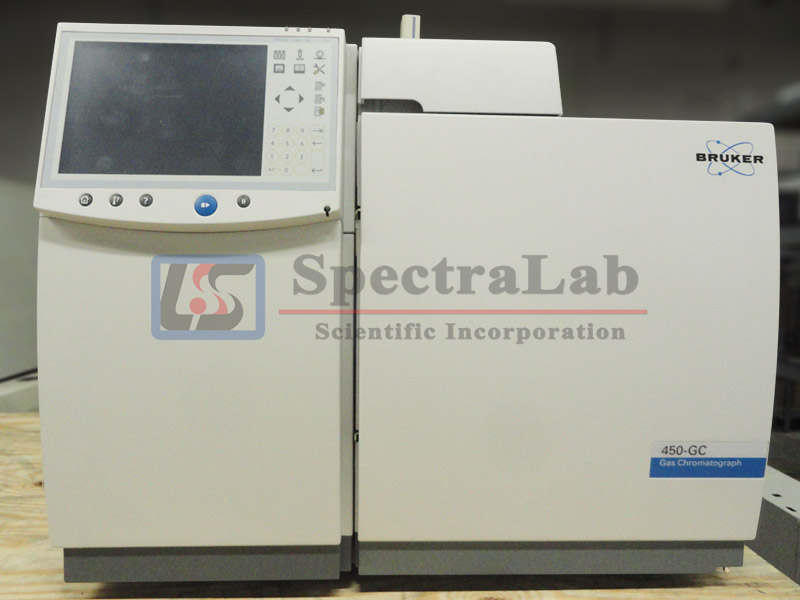

This Bruker 450 GC is in great shape. It has been tested at SpectraLab Scientific.
A 90 day warranty is included.
We encourage you to contact us to speak with one of our expert and professional team members. Thanks for looking and we look forward to hearing from you!
